A 48-core Multi-Loose Tube (MLT) Optical Fiber Cable with 6 tubes typically consists of six loose tubes, each housing eight optical fibers, totaling 48 fibers. This design offers flexibility and protection, making it suitable for various telecommunications applications. Key Features: Fiber Count: 48 optical fibers, organized as eight fibers per tube across six tubes. Construction: Stranded loose tube design with water-blocking materials to prevent moisture ingress. Jacket Material: Often features materials like polyethylene (PE) for durability. Environmental Resistance: Designed to withstand moisture and UV exposure. Mechanical Properties: Offers specific tensile strength, compression resistance, and bend radius parameters.

A 48-core Multi-Loose Tube (MLT) Optical Fiber Cable with 4 tubes typically consists of four loose tubes, each containing 12 optical fibers, totaling 48 fibers. This design offers flexibility and protection, making it suitable for various telecommunications applications. Key Features: Fiber Count: 48 optical fibers, organized as 12 fibers per tube across four tubes. Construction: Stranded loose tube design with water-blocking materials to prevent moisture ingress. Jacket Material: Often features Low Smoke Zero Halogen (LSZH) materials for durability and safety. Environmental Resistance: Designed to withstand moisture and UV exposure. Mechanical Properties: Offers specific tensile strength, compression resistance, and bend radius parameters.

A 24-core Multi-Loose Tube (MLT) Optical Fiber Cable with 6 tubes typically consists of six loose tubes, each housing four optical fibers, totaling 24 fibers. This design offers flexibility and protection, making it suitable for various telecommunications applications. Key Features: Fiber Count: 24 optical fibers, organized as four fibers per tube across six tubes. Construction: Stranded loose tube design with water-blocking materials to prevent moisture ingress. Jacket Material: Often features materials like polyethylene (PE) for durability. Environmental Resistance: Designed to withstand moisture and UV exposure. Mechanical Properties: Offers specific tensile strength, compression resistance, and bend radius parameters.

A 24-core Multi-Loose Tube (MLT) Optical Fiber Cable with 4 tubes typically consists of four loose tubes, each housing six optical fibers, totaling 24 fibers. This design offers flexibility and protection, making it suitable for various telecommunications applications. Key Features: Fiber Count: 24 optical fibers, organized as six fibers per tube across four tubes. Construction: Stranded loose tube design with gel-filled subunits to prevent water ingress. Jacket Material: Often features materials like polyethylene (PE) for durability. Environmental Resistance: Designed to withstand moisture and UV exposure. Mechanical Properties: Offers specific tensile strength, compression resistance, and bend radius parameters.

A 24 MLT Optical Fiber Cable refers to a 24-core Multi-Loose Tube (MLT) optical fiber cable. In this design, multiple loose tubes, each containing optical fibers, are stranded around a central strength member. This structure offers flexibility, protection, and ease of fiber management, making it suitable for various applications. Key Features: Fiber Count: Contains 24 optical fibers, typically organized within multiple loose tubes. Construction: Stranded loose tube design with gel-filled subunits to prevent water ingress. Jacket Material: Often features materials like nylon or polyethylene (PE) for durability. Environmental Resistance: Designed to withstand environmental factors such as moisture and UV exposure. Mechanical Properties: Offers specific tensile strength, compression resistance, and bend radius parameters.

Features of 2F FTTH Unarmoured Optical Fiber Cable (Sky Birds International) 1. Fiber Specifications Fiber Type: Single-mode (ITU-T G.652D or G.657A) Fiber Count: 2 fibers (2F) Low Attenuation: Ensures high-speed data transmission over long distances 2. Cable Construction Buffering: Tight-buffered or loose-tube construction Strength Member: Aramid yarns for tensile strength Outer Jacket: LSZH (Low Smoke Zero Halogen) for fire safety Outer Diameter: Typically 2.0–3.0 mm 3. Physical & Mechanical Properties Tensile Strength: 300–500 N Bending Radius: ≥ 15 times cable diameter (during installation), ≥ 20 times (operation) Crush Resistance: 1000 N/100 mm Temperature Range: -40°C to +70°C

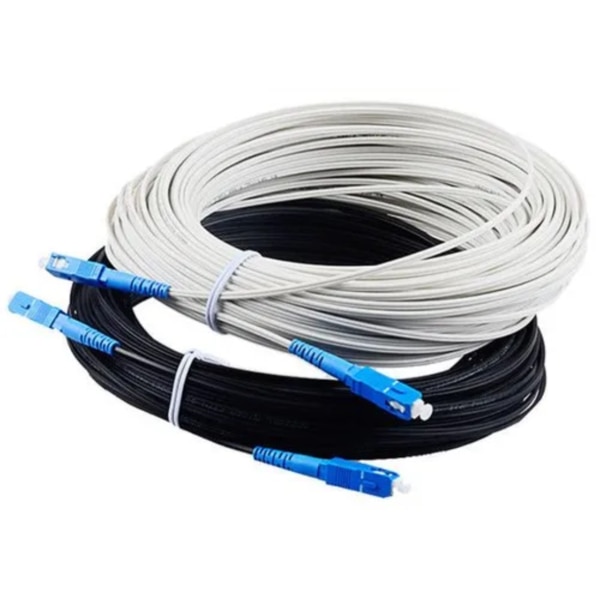

Specifications: Bend in-sensitive single mode G.657A1 fibers, provides smaller bend radius. UV resistant, flame retardant LSZH cable jacket. 2 X 3mm Bow type outer jacket, easy to bend, suitable for fiber cabling in limited space and small angle. Non Metallic (ARP) Or Metallic(Steel) rod used as strength member embedded in sheath. Attenuation is 1310 nm - 0.4 and 1550 nm-0.3 Hassle free installation at customer premise without using Splicing machine. Customized Length/Connector type available on order 5 m to 150 m.

1GE SECURE GEPON ONU meets telecom operators FTTO (office), FTTD (Desk), FTTH(Home) broadband speed, SOHO broadband access, video surveillance and other requirements and design a EPON Gigabit Ethernet products. The box is based on the mature Gigabit EPON technology, highly reliable and easy to maintain, with guaranteed QOS for different service. And it is fully compliant with technical regulations such as ITU-T G.984.x and IEEE802.3ah. Special Features SECURE GEPON ONU ► Compatible with popular OLT(HW,ZTE…) ► Industrial Design ► Routing or Bridging Mode ► Detecting Rogue ONU ► Flow & Storm Control , Loop Detection ► Firewall: DDOS, Filtering Based on ACL/MAC/URL ► O&M: WEB/TELNET/OAM(OMCI)/TR069 Technical parameters Technical item 1GE Secure GEPON ONU PON interface 1 EPON port Wavelength:Tx1310nm,Rx 1490nm SC/UPC connector Receiving sensitivity: ≤-28dBm Transmitting optical power: 0~+4dBm Transmission distance: 20KM LAN interface 1 x 10/100/1000Mbps auto adaptive Ethernet interfaces.10/100/1000M Full/Half, RJ45 connector LED 3, For Status of REG、SYS、LINK/ACT Operating condition Temperature: -30℃～+70℃ Humidity: 10%～90%（non-condensing） Storing condition Temperature : -30℃～+70℃ Humidity :10%～90%（non-condensing） Power supply DC 12V/0.5A(option) Power consumption ≤4W Dimension 82mm×82mm×25mm（L×W×H） Net weight 85g Software Key Feature SECURE GEPON ONU Software mode Bridging mode and Routing mode. Abnormal protection Detecting Rogue ONU, Hardware Dying Gasp. Firewall DDOS, Filtering Based on ACL/MAC/URL. Layer2 802.1D&802.1ad bridge, 802.1p Cos, 802.1Q VLAN. Layer3 IPv4/IPv6, DHCP Client/Server , PPPoE, NAT , DMZ ,DDNS. Multicast IGMP v1/v2/v3 , IGMP snooping. Security Flow & Storm control, Loop Detection. O&M WEB/TELNET/OAM/OMCI/TR069.

GPON OLT 16 PON Product introduction GPON OLT 16 PON, 4*1GE(SFP)/10GE(SFP+) Uplink. Automatic configuration,Automatic upgrade, EMS & Web management Material: Steel shell Size: 442mm*200mm*43.6mm（L*W*H） Weight: 3.1kg Functional characteristics GPON OLT 16 PON ►Satisfactory standard Meet ITU-T G984/G.988 standard Meet China’s relevant GPON standards ►L3 OLT Support static route RIP v1/v2、OSFP v2 ►Easy to manage Friendly EMS/Web/Telnet/CLI management CLI command style similar to mainstream manufacturers Support APP management ►Fully open platform Open to any brand of ONT ►High performance cost 1U height compact design Adopt mainstream chip scheme Technical parameters Item V1600G2 Chassis Rack 1U 19 inch standard box 1G/10G Uplink Port QTY 12 Copper 10/100/1000M auto-negotiation 8 SFP 1GE 4 SFP+ 10GE GPON Port QTY 16 Physical Interface SFP Slot Connector Type Class B+/C+ Max splitting ratio 1:128 Management Ports 1*10/100BASE-T out-band port, 1*CONSOLE port PON Port Specification(Class B+ module) Transmission Distance 20KM GPON port speed Upstream 1.244G Downstream 2.488G Wavelength TX 1490nm, RX 1310nm Connector SC/UPC Fiber Type 9/125μm SMF TX Power +1~+5dBm Rx Sensitivity -28dBm Saturation Optical Power -8dBm Dimension(L*W*H) 442*320*43.6mm Weight 4.5kg AC Power Supply AC:90～264V, 47/63Hz DC Power Supply x Double Power Module Hot Backup √ Power Consumption 85W Operating Environment Working Temperature 0～+50℃ Storage Temperature -40～+85℃ Relative Humidity 5~90%(non-conditioning)
