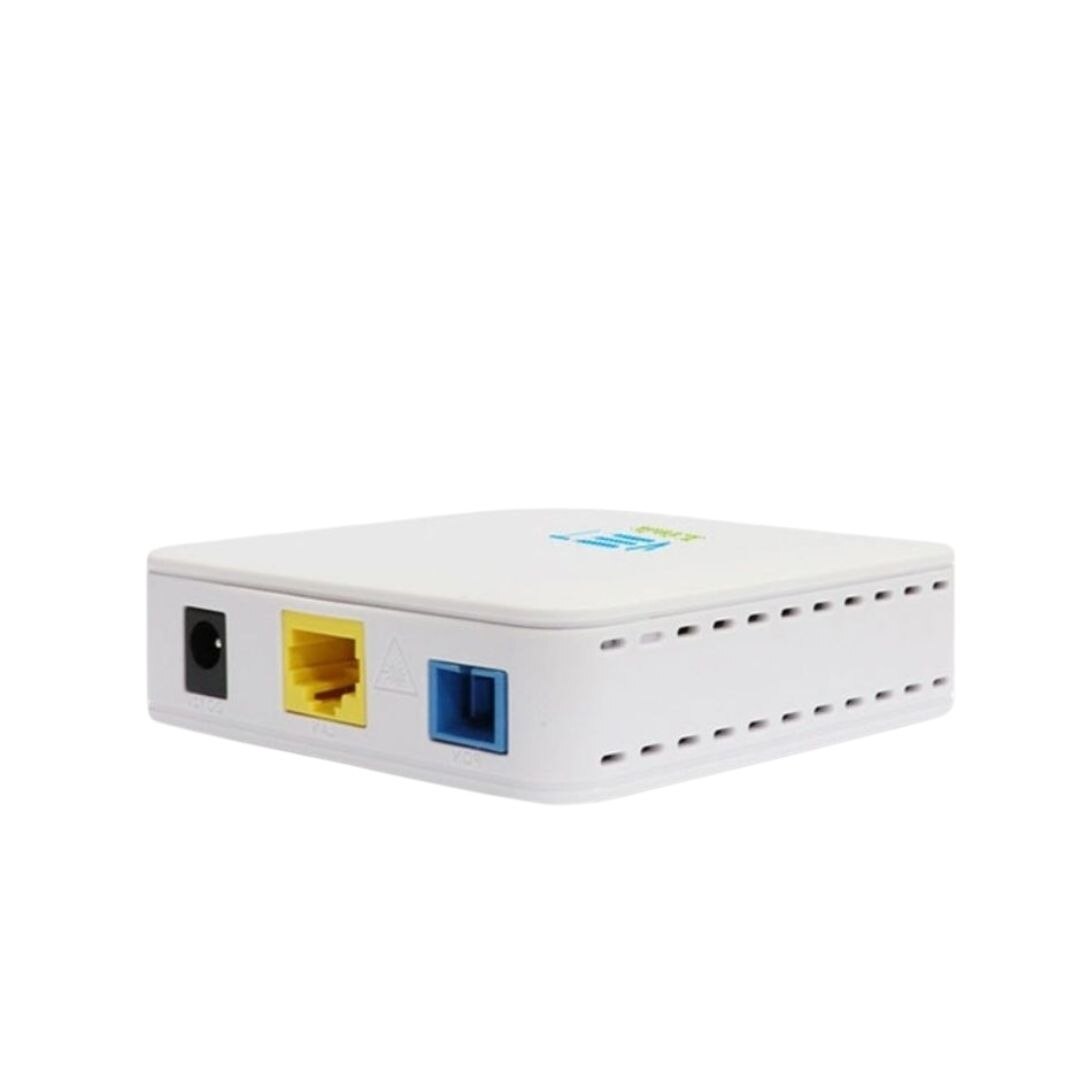

GEPON ONU NETLINK (1GE Secure ONU)(V2801SE)

Description

1GE SECURE GEPON ONU meets telecom operators FTTO (office), FTTD (Desk), FTTH(Home) broadband speed, SOHO broadband access, video surveillance and other requirements and design a EPON Gigabit Ethernet products. The box is based on the mature Gigabit EPON technology, highly reliable and easy to maintain, with guaranteed QOS for different service. And it is fully compliant with technical regulations such as ITU-T G.984.x and IEEE802.3ah. Special Features SECURE GEPON ONU ► Compatible with popular OLT(HW,ZTE…) ► Industrial Design ► Routing or Bridging Mode ► Detecting Rogue ONU ► Flow & Storm Control , Loop Detection ► Firewall: DDOS, Filtering Based on ACL/MAC/URL ► O&M: WEB/TELNET/OAM(OMCI)/TR069 Technical parameters Technical item 1GE Secure GEPON ONU PON interface 1 EPON port Wavelength:Tx1310nm,Rx 1490nm SC/UPC connector Receiving sensitivity: ≤-28dBm Transmitting optical power: 0~+4dBm Transmission distance: 20KM LAN interface 1 x 10/100/1000Mbps auto adaptive Ethernet interfaces.10/100/1000M Full/Half, RJ45 connector LED 3, For Status of REG、SYS、LINK/ACT Operating condition Temperature: -30℃～+70℃ Humidity: 10%～90%（non-condensing） Storing condition Temperature : -30℃～+70℃ Humidity :10%～90%（non-condensing） Power supply DC 12V/0.5A(option) Power consumption ≤4W Dimension 82mm×82mm×25mm（L×W×H） Net weight 85g Software Key Feature SECURE GEPON ONU Software mode Bridging mode and Routing mode. Abnormal protection Detecting Rogue ONU, Hardware Dying Gasp. Firewall DDOS, Filtering Based on ACL/MAC/URL. Layer2 802.1D&802.1ad bridge, 802.1p Cos, 802.1Q VLAN. Layer3 IPv4/IPv6, DHCP Client/Server , PPPoE, NAT , DMZ ,DDNS. Multicast IGMP v1/v2/v3 , IGMP snooping. Security Flow & Storm control, Loop Detection. O&M WEB/TELNET/OAM/OMCI/TR069.
