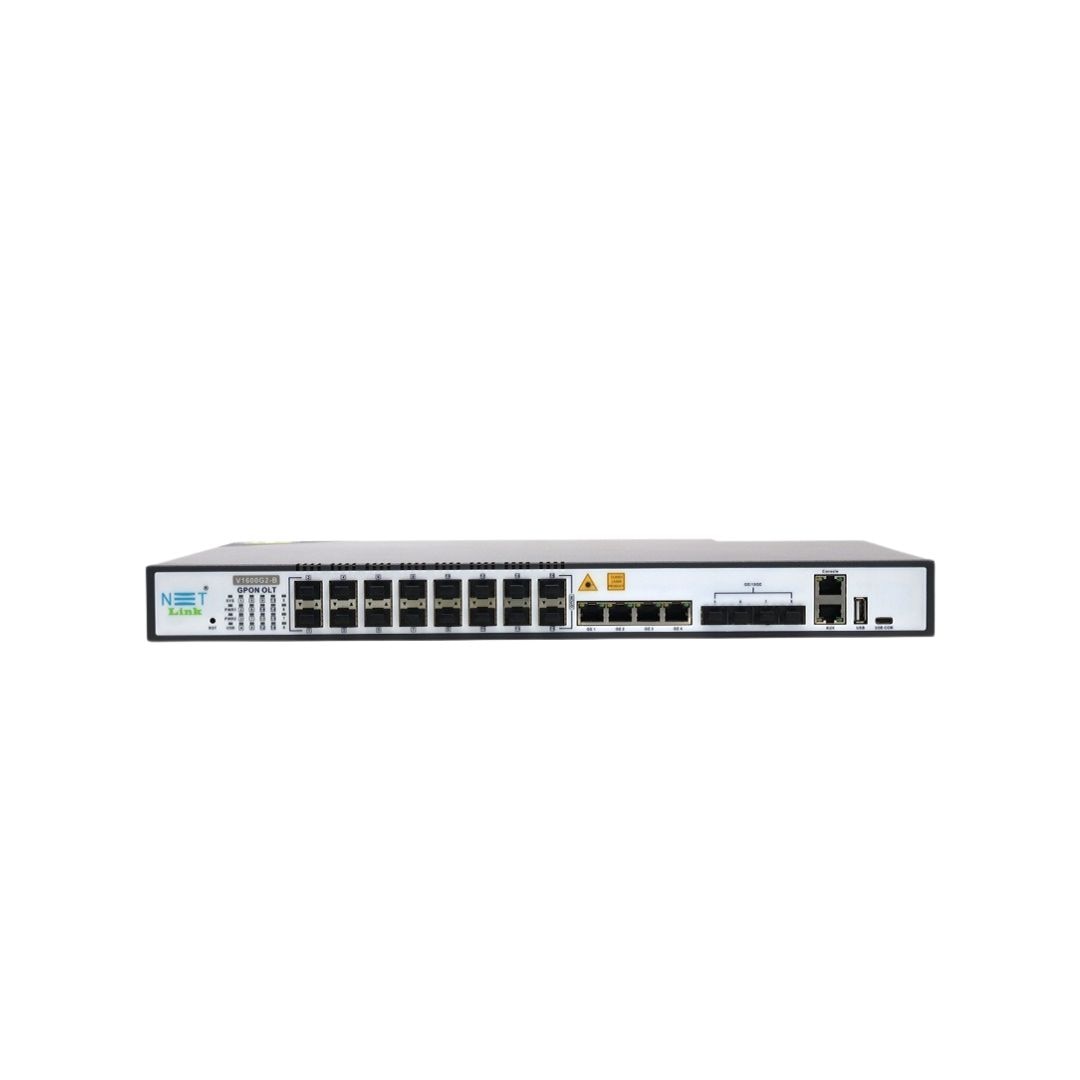

GPON OLT 16 PON (V1600G2-B) – NETLINK

INR 179000

Phone Number

08048034271

Please keep 0 before dialling the number.

Email Address skybirdsinternational995@gmail.com

Mon-Thu: 10 AM - 2 PM • Fri: 3 PM - 7AM

Other Website Visit our other website

Address India

Delhi, India, 110018

Description

GPON OLT 16 PON Product introduction GPON OLT 16 PON, 4*1GE(SFP)/10GE(SFP+) Uplink. Automatic configuration,Automatic upgrade, EMS & Web management Material: Steel shell Size: 442mm*200mm*43.6mm（L*W*H） Weight: 3.1kg Functional characteristics GPON OLT 16 PON ►Satisfactory standard Meet ITU-T G984/G.988 standard Meet China’s relevant GPON standards ►L3 OLT Support static route RIP v1/v2、OSFP v2 ►Easy to manage Friendly EMS/Web/Telnet/CLI management CLI command style similar to mainstream manufacturers Support APP management ►Fully open platform Open to any brand of ONT ►High performance cost 1U height compact design Adopt mainstream chip scheme Technical parameters Item V1600G2 Chassis Rack 1U 19 inch standard box 1G/10G Uplink Port QTY 12 Copper 10/100/1000M auto-negotiation 8 SFP 1GE 4 SFP+ 10GE GPON Port QTY 16 Physical Interface SFP Slot Connector Type Class B+/C+ Max splitting ratio 1:128 Management Ports 1*10/100BASE-T out-band port, 1*CONSOLE port PON Port Specification(Class B+ module) Transmission Distance 20KM GPON port speed Upstream 1.244G Downstream 2.488G Wavelength TX 1490nm, RX 1310nm Connector SC/UPC Fiber Type 9/125μm SMF TX Power +1~+5dBm Rx Sensitivity -28dBm Saturation Optical Power -8dBm Dimension(L*W*H) 442*320*43.6mm Weight 4.5kg AC Power Supply AC:90～264V, 47/63Hz DC Power Supply x Double Power Module Hot Backup √ Power Consumption 85W Operating Environment Working Temperature 0～+50℃ Storage Temperature -40～+85℃ Relative Humidity 5~90%(non-conditioning)
