The lightweight and compact Smart OTDR speeds and optimizes field testing of metro and access networks-with a tailored OTDR interface and automatic analysis that any a technician can understand. Features: Single-/dual-/tri-wavelength versions with 1310/1550 nm and in-service 1625 or 1650 nm wavelengths. Integrated CW light source. PON optimized to test through a 1×128 splitter. Built-in PON/XG-PON power meter (1490/1550/1578 nm) Automated fiber inspection and macrobend detection with pass/fail analysis software.

FEATURES Dual Mode Support (EPON/GPON) Compatible With Popular OLT Industrial Design Routing or Bridging Detecting Rouge ONU Firewall Support DDOS Flow and Storm Control & Loop Detection ACL/MAC/URL Filtering Auto Mode Switch

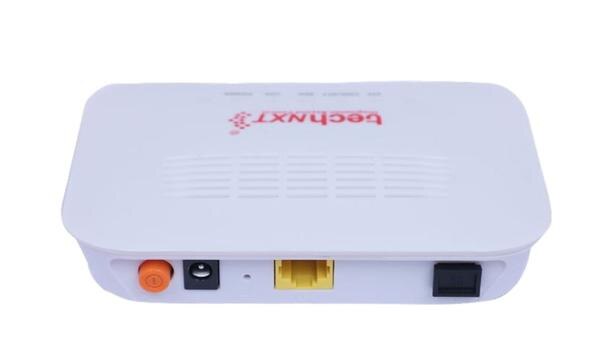

TnT-101-GEXPON 1GE ONU is specially designed to meet the needs of telecom operators for FTTO (office), FTTD (desktop),FTTH (home), SOHO broadband access, video surveillance, etc. The ONU is based on high-performance chip technology solutions, and supports Layer 2/Layer 3 functions, providing data services for carrier-grade FTTH applications. The ONT has high reliability and can be applied to a wide temperature environment; and has a powerful firewall function, which is easy to manage and maintain. It can provide QoS guarantee for different services. The ONT complies with international technical standards such as IEEE802.3ah and ITU-T G.984 FEATURES Dual Mode Support (EPON/GPON) Compatible With Popular OLT Industrial Design Routing or Bridging Detecting Rouge ONU Firewall Support DDOS Flow and Storm Control & Loop Detection ACL/MAC/URL Filtering Auto Mode Switch

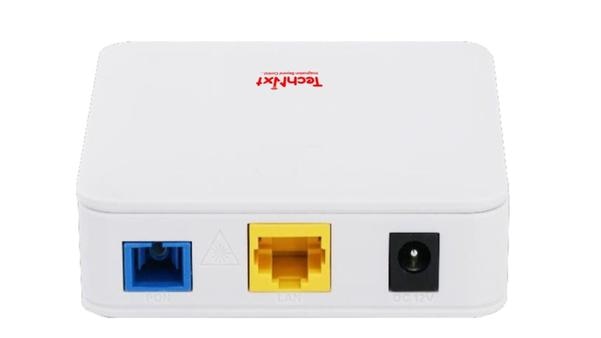

1GE SECURE GEPON ONU meets telecom operators FTTO (office), FTTD (Desk), FTTH(Home) broadband speed, SOHO broadband access, video surveillance and other requirements and design a EPON Gigabit Ethernet products. The box is based on the mature Gigabit EPON technology, highly reliable and easy to maintain, with guaranteed QOS for different service. And it is fully compliant with technical regulations such as ITU-T G.984.x and IEEE802.3ah. Special Features SECURE GEPON ONU ► Compatible with popular OLT(HW,ZTE…) ► Industrial Design ► Routing or Bridging Mode ► Detecting Rogue ONU ► Flow & Storm Control , Loop Detection ► Firewall: DDOS, Filtering Based on ACL/MAC/URL ► O&M: WEB/TELNET/OAM(OMCI)/TR069 Technical parameters Technical item 1GE Secure GEPON ONU PON interface 1 EPON port Wavelength:Tx1310nm,Rx 1490nm SC/UPC connector Receiving sensitivity: ≤-28dBm Transmitting optical power: 0~+4dBm Transmission distance: 20KM LAN interface 1 x 10/100/1000Mbps auto adaptive Ethernet interfaces.10/100/1000M Full/Half, RJ45 connector LED 3, For Status of REG、SYS、LINK/ACT Operating condition Temperature: -30℃～+70℃ Humidity: 10%～90%（non-condensing） Storing condition Temperature : -30℃～+70℃ Humidity :10%～90%（non-condensing） Power supply DC 12V/0.5A(option) Power consumption ≤4W Dimension 82mm×82mm×25mm（L×W×H） Net weight 85g Software Key Feature SECURE GEPON ONU Software mode Bridging mode and Routing mode. Abnormal protection Detecting Rogue ONU, Hardware Dying Gasp. Firewall DDOS, Filtering Based on ACL/MAC/URL. Layer2 802.1D&802.1ad bridge, 802.1p Cos, 802.1Q VLAN. Layer3 IPv4/IPv6, DHCP Client/Server , PPPoE, NAT , DMZ ,DDNS. Multicast IGMP v1/v2/v3 , IGMP snooping. Security Flow & Storm control, Loop Detection. O&M WEB/TELNET/OAM/OMCI/TR069.

Dimension 178mm×120mm×30m(L×W×H) Net weight 0.32Kg Operating condition Operating temp: 0 ~ +55°C Operating humidity: 5 ~ 90% (non-condensed) Storing condition Storing temp: -30 ~ +60°C Storing humidity: 5 ~ 90% (non-condensed) Power adapter DC 12V,1.5A, external AC-DC power adaptor Power supply ≤10W Interface 2GE+1POTS+WiFi5 Indicators PWR, PON, LOS, WAN, LAN1, LAN2, 2.4G, 5G, PHONE ○ Interface parameter PON interface 1 XPON port(EPON PX20+ and GPON Class B+) SC Single Mode，Receiving sensitivity: ≤ –28dBm TX optical power: 0～+4dBm Transmission distance: 20KM RX 2.488Gbps, TX 1.2488Gbps Wavelength Tx-1310nm, Rx-1490nm Optical interface SC/UPC connector User interface 2 * 10/100/1000 Mbps auto adaptive Ethernet interface , RJ45 connectors 1 POTS RJ11 Connector WLAN interface Compliant with IEEE 802.11 b/g/n/ac, 1167 Mbps , Support 2×2MIMO, 5 dBi external antenna ○ Function Data Management OAM / OMCI, Telnet, WEB, TR069 Support full management of HGU functions by NETLINK OLT Internet connection Support Bridge, Route and Bridge/Route mixed mode Multicast Support IGMP v1/v2/v3 Support IGMP Proxy and MLD Proxy Support IGMP Snooping and MLD Snooping VLAN Support VLAN tag mode Support VLAN trunk mode Support VLAN translation Data Service Functions Full speed non-blocking switching 2K MAC address table 64 full range VLAN ID Support QinQ VLAN, 1:1 VLAN, VLAN reusing, VLAN trunk, etc Integrated port monitoring, port mirroring, port rate limiting, port SLA, etc Support auto polarity detection of Ethernet ports (AUTO MDIX) Integrated IEEE802.1p QoS with four level priority queues Support IGMP v1/v2/v3 snooping/proxy and MLD v1/v2 snooping/proxy VoIP Call protocol: SIP(IMS compatible) seamless compatible with all popular call agent Integrate heartbeat function and support active/standby call agent Voice coding: ITU-T G.711/G.722/G.729, auto-negotiate with call agent Echo cancellation exceeding ITU-T G.165/G.168-2002, up to 128ms tail length Support high/low speed fax, bypass fax, and T38 fax Support high speed MODEM(56Kbps) dial access Support RFC2833 and redundant RFC2833, difference rings, MD5 authentication, call forward, call waiting, hot-line call, alarm clock, and all kinds of value-added voice service Multi-party conferencing Wireless Support Wireless AP mode Support 802.11 b/g/n/ac Support Multiple SSID Authentication : WEP/WAP-PSK(TKIP)/WAP2-PSK(AES) Modulation type: DSSS, CCK and OFDM Encoding scheme: BPSK, QPSK, 16QAM and 64QAM Support EasyMesh QoS Support 4 queues Support SP and WRR Support 802.1P and DSCP L3 Support IPv4, IPv6 and IPv4/IPv6 dual stack Support DHCP/PPPOE/Static Support Static route Support DHCP Server Support NAT/DMZ/DDNS Support Virtual Server Security Support Firewall Support Mac filter Based on MAC or URL Support ACL

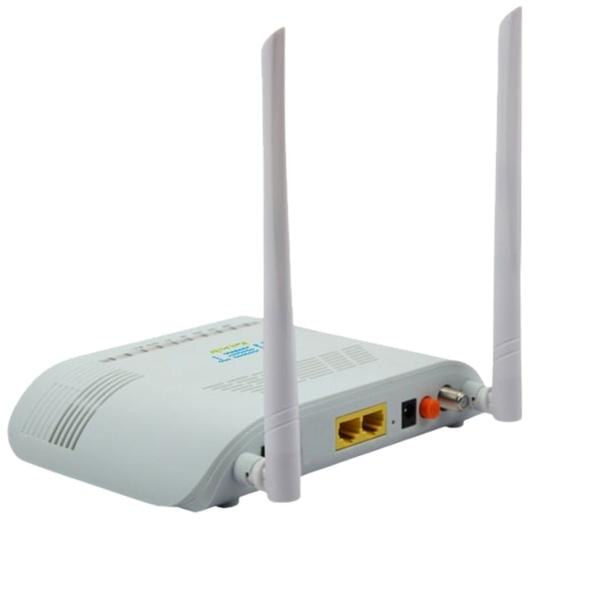

Deul Mode (can access GPON/EPON OLTs). ► Plug and play with integrated auto-detection, auto-configuration, and automatic firmware upgrades. ► Fully compliant with the IEEE 802.3ah specification and OAM functions. ► Supports 802.11n 2T2R speeds of up to 300 Mbps. ► Offers rich VLAN support, DHCP server capabilities, and IGMP snooping for multicast features. ► Provides advantageous traffic management. ► Features advanced Dynamic Bandwidth Allocation (DBA). ► The WAN port can operate in either bridge or router mode. ► Includes advanced Layer 2 features such as QinQ VLAN and QoS support. ► Supports NAT and firewall functions. ► Offers Console/Telnet/NMS management interfaces for easy operation and maintenance. ► Supports a 2K MAC address table. ► Fully compatible with OLTs based on Broadcom, PMC, and Cortina chipsets.

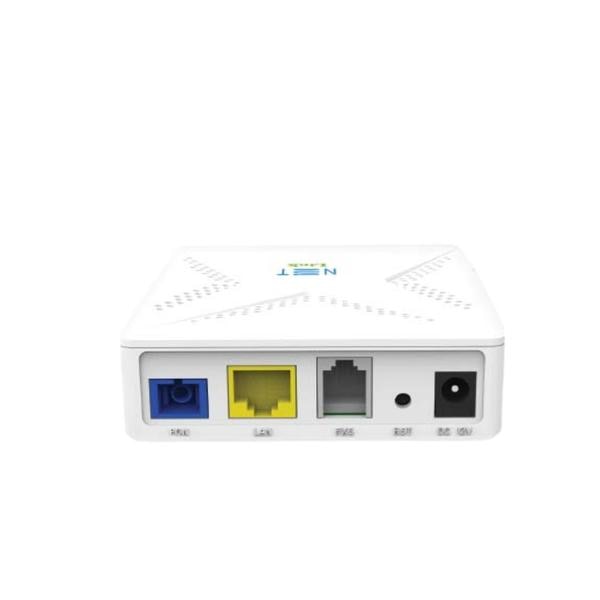

1GE+1POTS XPON HGU terminal devices are designed for fulfilling FTTH and triple play service demand of fixed network operators. This box is based on the mature Chipset (Realtek) technology, which have high speed performance, and the technology of Layer 2/3, and high quality VoIP as well. Support full management of HGU devices through Netlink OLT. They are highly reliable and easy to maintain, with guaranteed QoS for different service. • Support VLAN tag mode • Support VLAN trunk mode • Support VLAN translation • Full speed non-blocking switching • 2K MAC address table 4K VLAN ID • Integrated port monitoring, port mirroring, port rate limiting, port SLA, etc • Support auto polarity detection of Ethernet ports (AUTO MDIX) • Integrated IEEE802.1p QoS with four level priority queues • Support IGMP v1/v2/v3 snooping/proxy and MLD v1/v2 snooping/proxy • SIP and IMS SIP • G.711a/G.711u/G.722/G.729 Codec • Echo cancellation,VAD/CNG, DTMF Relay •T.30/T.38 FAX

The MaxTester 700D Series builds on the proven tablet-inspired, lightweight and rugged OTDR MaxTester platform. The familiar 7-inch, outdoor-enhanced touchscreen continues to deliver an unprecedented user experience with its intuitive Windows-like GUI ensures a fast learning curve. The OTDR 2 environment offers icon-based functions, instant boot-up, automatic macrobend finders as well as improved auto and real‑time modes. The MaxTester 700D Series is a line of genuine high-performance OTDRs from the world’s leading manufacturer. It delivers EXFO’s tried and true OTDR quality and accuracy along with the best optical performance for right-first-time results, every time. The amazing 12-hour battery life will never let a technician down, and the plug-and-play hardware options, like the VFL, power meter and USB tools, make every technician’s job easier. Most importantly, the MaxTester 700D Series comes with the intelligent Optical Link Mapper (iOLM), an intelligent OTDR‑based application. This advanced software turns even the most complex trace analysis into a simple, one-touch task.
