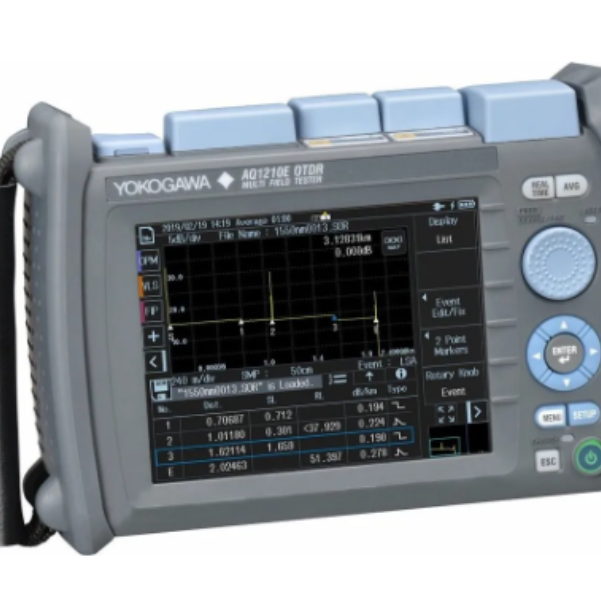

The Yokogawa AQ1210E OTDR is a compact, field‑ready optical time domain reflectometer designed for lThe Yokogawa AQ1210E OTDR is a compact, field‑ready optical time domain reflectometer designed for last‑mile and access network testing.
📊 Key Specs
Dynamic Range: 37 dB @ 1310 nm, 35 dB @ 1550 nm, 35 dB @ 1625 nm
Effective Fiber Length: Up to ~120 km under ideal conditions (this is where the “120 km” figure comes from — it’s the maximum measurable fiber span, not the dynamic range itself).
Display: 5.7‑inch TFT color touchscreen + hard keys
Operation: Dual mode (touch + keys) for flexibility in the field
Battery: Rechargeable, portable for outdoor use
Applications: Return loss measurement, fiber cable troubleshooting, FTTH/FTTx deployments
✅ Advantages
Compact and rugged for field technicians
Automated measurement and reporting features
Dual operation (touchscreen + keys) makes it versatile
Suitable for longer fiber spans (~120 km) compared to entry‑level OTDRsThe Yokogawa AQ1210E OTDR is a compact, field‑ready optical time domain reflectometer designed for last‑mile and access network testing.
