Overview

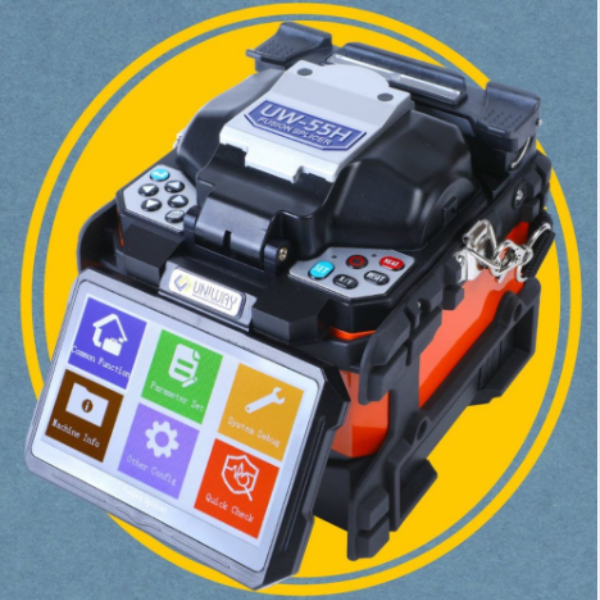

The UW-55H Fusion Splicing Machine is a compact core alignment splicer designed specifically for telecom and FTTH network installations. It combines high precision, fast splicing speed, and portability, making it a reliable choice for field engineers and contractors.
With its semi-automatic and fully automatic modes, the UW-55H provides flexibility while ensuring low splice loss and consistent performance in demanding environments.
Key Features
Core-to-Core Alignment Technology
Ensures accurate fiber alignment for low-loss splicing and high signal quality
Fast Splicing Performance
Splice Time: ~6 seconds
Heating Time: ~15 seconds
Multiple Operation Modes
Supports Auto, Manual, and Full Auto modes for flexible usage
Compact & Lightweight Design
Easy to carry and ideal for field work (approx. 1.3 kg)
High-Resolution Display
5-inch color LCD with clear fiber imaging for precise operation
Long Battery Backup
Up to 250 splice & heat cycles on a single charge
Rugged & Field-Ready
Dustproof, water-resistant, and suitable for outdoor telecom environments
Technical Specifications
Alignment Method: Core Alignment
Fiber Type: SM, MM, NZDS, EDF, Pigtail, Drop Cable
Typical Splice Loss:
SM: 0.02 dB
MM: 0.01 dB
NZDS/EDF: 0.04 dB
Return Loss: ≥60 dB
Splicing Time: ~6 sec
Heating Time: ~15 sec
Magnification:
400× (single axis)
300× (dual view)
Display: 5-inch LCD
Storage Capacity: Up to 6, 000 splice records
Battery: 11.1V Li-ion (≈250 cycles)
Operating Conditions:
Temperature: -10°C to +50°C
Humidity: 0–95%
Altitude: up to 5000 m
Applications (Telecom Use)
FTTH (Fiber to the Home) deployment
Telecom network installation
Broadband & ISP infrastructure
Cable TV (CATV) systems
Fiber maintenance & repair
Advantages
Affordable core alignment splicer for telecom projects
Fast 6-sec splice time improves productivity
Portable and lightweight for field engineers
Multi-mode operation (auto/manual)
Reliable for daily telecom installation work
Why Choose UW-55H for Telecom?
The UW-55H is a strong choice if you need:
Core alignment accuracy at a budget price
Fast and consistent splicing performance
A machine suitable for Indian telecom field conditions
It’s especially ideal for contractors, FTTH installers, and mid-scale telecom projects.
