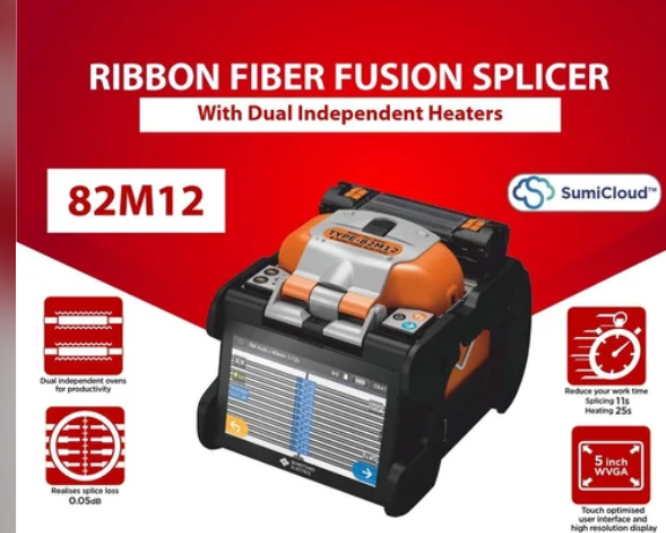

The Sumitomo Ribbon Fusion Splicing Machine (12 Fiber / 12F) is a fully automatic mass fusion splicer designed for high-capacity fiber optic networks. It supports simultaneous splicing of up to 12 fibers, significantly reducing installation time in large-scale projects like data centers and backbone networks.
With a typical splice time of 11 seconds, this machine delivers fast, consistent, and low-loss ribbon splicing, making it ideal for modern high-density fiber deployments.
Key Features
12-Fiber Ribbon Splicing (12F)
Splices up to 12 fibers simultaneously, boosting productivity in large projects
Fast Splicing Speed (11 Seconds)
Quick mode ensures rapid execution with minimal downtime
Fully Automatic Operation
Automatic alignment, arc calibration, and splice execution for error-free performance
Advanced Alignment Technology (Active ACAS)
Reduces fiber offset and improves splice accuracy
Dual Independent Heating Ovens
Enables continuous workflow by heating sleeves in parallel
5-inch Touchscreen Display
Easy-to-use interface with modern touch controls
Wireless Connectivity (LAN Support)
Supports remote monitoring and software updates
Technical Specifications
Fiber Type: Ribbon Fiber (Up to 12F)
Alignment Method: Cladding Alignment with Active ACAS
Splice Time: ~11 seconds (Typical)
Heating Time: ~35 seconds
Typical Splice Loss:
SM: ~0.05 dB
Display: 5-inch Touchscreen
Battery Capacity: ~180 splice & heat cycles
Connectivity: Wireless LAN
Durability: Shock-resistant, field-ready design
Applications
High-density fiber optic networks
Data centers & cloud infrastructure
Telecom backbone deployment
Metro & long-haul networks
MPO / ribbon cable installations
Advantages
Mass splicing = 12x faster productivity
Consistent low-loss performance
Reduced labor and installation time
Ideal for large-scale fiber rollout projects
Reliable for industrial and telecom environments.
