Overview

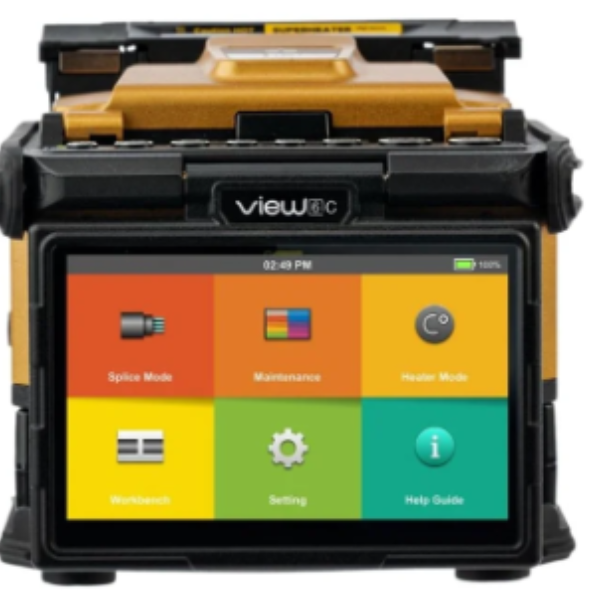

The INNO View 6C Fusion Splicing Machine is a fully automatic, high-precision fusion splicer designed for telecom professionals and fiber network installers. Featuring advanced active V-groove (cladding alignment) technology, it delivers consistent low-loss splicing with exceptional reliability.
With its industry-leading 520× magnification, intuitive touchscreen interface, and rugged field-ready design, the View 6C is widely used in FTTH, telecom, and data network deployments.
Key Features
Fully Automatic Operation
Auto alignment, arc calibration, and splice process for faster and error-free performance
Active Cladding Alignment Technology
Ensures accurate fiber positioning and stable splice results
Ultra-High 520× Magnification
Provides the clearest fiber image for precise splicing
Fast Splicing & Heating
Splicing Time: ~7 sec (Quick Mode)
Heating Time: ~13 sec
5-inch Touchscreen LCD
Bright, high-resolution display with intuitive GUI for easy operation
3 LED Lights for Low-Light Work
Ensures clear visibility even in dark environments
High Battery Capacity
Up to 250 splice & heat cycles per charge
Durable Ceramic Clamp System
Enhances fiber stability and long-term durability
Technical Specifications
Alignment Method: Active V-Groove (Cladding Alignment)
Applicable Fibers: SM, MM, DS, NZDS, G.657
Typical Splice Loss:
SM: 0.03 dB
MM: 0.02 dB
DS/NZDS: 0.05 dB
Magnification: Up to 520×
Display: 5-inch Color LCD Touchscreen
Splicing Time: 7–9 seconds
Heating Time: ~13 seconds
Battery: 5200 mAh (≈250 cycles)
Electrode Life: ~5, 500 arcs
Operating Conditions:
Temperature: -10°C to +50°C
Suitable for harsh field environments
Applications
FTTH (Fiber to the Home) projects
Telecom infrastructure deployment
Broadband & data communication networks
Cable TV (CATV) systems
Fiber maintenance & repair
Advantages
Fully automatic operation reduces human error
High magnification = higher splice accuracy
Fast performance boosts field productivity
Reliable in harsh conditions
Ideal balance of performance and affordability
Why Choose INNO View 6C?
The INNO View 6C stands out as a powerful, fully automatic fusion splicer with one of the highest magnification levels in its class. It is perfect for technicians who need speed, precision, and durability in daily fiber optic operations.
