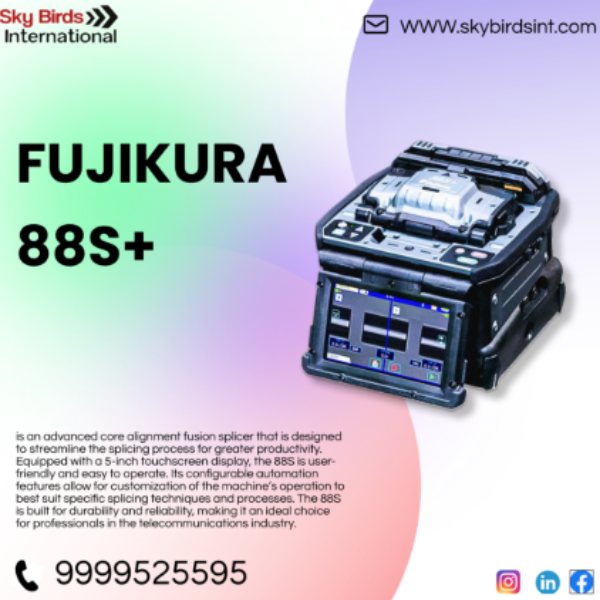

The Fujikura 88S+ is a flagship active core-alignment fusion splicer as of 2026, recognized for high-speed automated features and robust performance in telecommunications field work.
Core Technical Specifications
Alignment Method: High-precision Active Core-to-Core Alignment.
Splicing Speed: Typical splice time of 7 seconds (SM FAST mode).
Heating Speed: Automated tube heater completes cycles in 9 to 15 seconds depending on the sleeve type.
Automation: Features a programmable 'automatic wind protector' and 'sheath clamps' that open automatically after splicing to speed up fiber removal.
Battery Performance: Supports approximately 300 splice and heat cycles on a single charge; battery life spans roughly 500 recharge cycles.
Electrode Life: Rated for approximately 5, 000 splices; electrodes can be replaced without tools.
Advanced Features & Intelligence
Active Fusion Control: Dynamically adjusts fusion parameters in real-time by analyzing fiber brightness and cleave conditions to minimize splice loss.
Active Blade Management: Uses Bluetooth to connect with the CT50 Cleaver, automatically rotating the blade when it detects wear.
Fiber Discrimination: Automatically identifies fiber types (e.g., G.652, G.657, G.651) and selects the optimal arc discharge parameters.
Storage & Display: 4.9 to 5-inch color TFT touchscreen; stores up to 20, 000 splice results and 100 images.
Physical and Environmental Build
Weight & Dimensions: Approximately 2.8 kg (including battery); measures 170 x 173 x 150 mm.
Ruggedness: Designed for extreme conditions, operating in altitudes up to 5, 000m and temperatures from -10°C to +50°C.
Connectivity: Includes USB 2.0 and Bluetooth 4.1 LE for data transfer and firmware updates.
2026 Market Pricing in India
As of early 2026, the Fujikura 88S+ typically retails between ₹2, 10, 000 and ₹2, 35, 000 depending on the merchant and bundled accessories like the CT50 cleaver.
