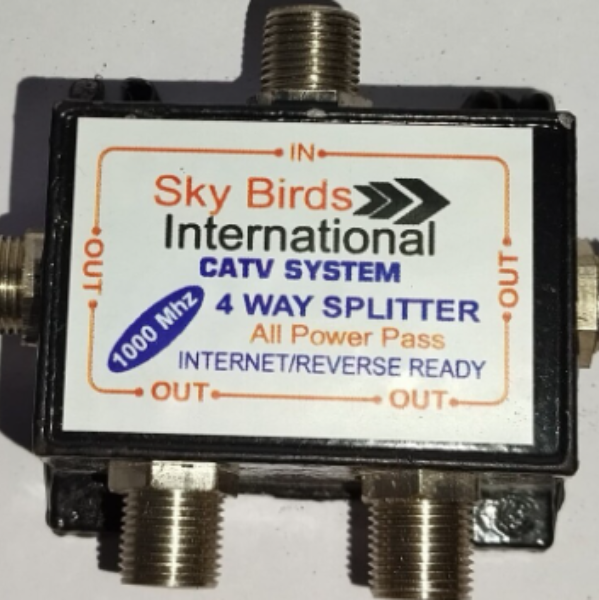

A CATV 4-way splitter is a device used in cable television (CATV) systems to distribute a single incoming coaxial cable signal into four separate outputs. It’s commonly used in homes or offices where multiple TVs, set-top boxes, or cable modems need to share the same signal source.
Key Features
Input/Output: 1 input port, 4 output ports.
Frequency Range: Typically supports 5 MHz – 1000 MHz (some go up to 2.5 GHz for satellite/cable internet compatibility).
Impedance: Standard 75 ohms, matching coaxial cable systems.
Signal Loss: Each split introduces insertion loss (usually around 7–8 dB per output for a 4-way splitter).
Shielding: High-quality splitters have good shielding to minimize interference and signal leakage.
Uses
Connecting multiple TVs to one cable line.
Splitting signal for TV and cable modem simultaneously.
Distributing signal in home theater setups.
Considerations
Signal Strength: Splitting reduces signal strength; weak signals may require an amplifier.
Quality: Cheap splitters can cause signal degradation, ghosting, or internet issues.
Placement: Should be installed close to the main cable entry point for best performance.
