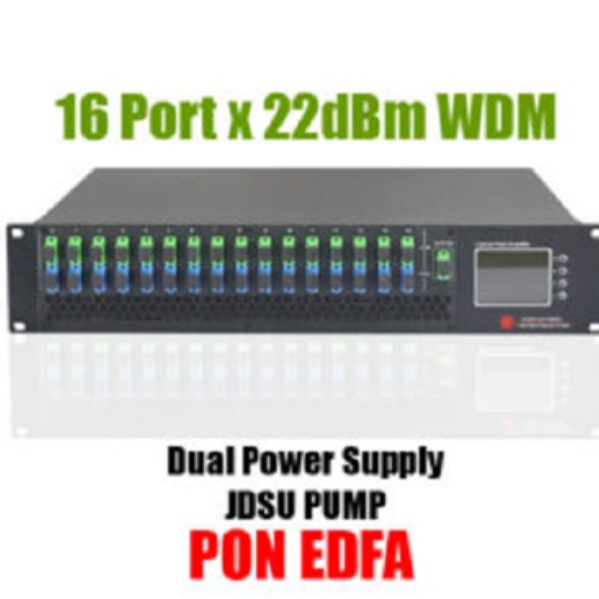

A 16-Port × 22 dBm WDM EDFA (Erbium-Doped Fiber Amplifier) is a high-power optical amplifier designed for CATV and PON systems, delivering stable 22 dBm output per port with wavelength-division multiplexing (WDM) capability. It is widely used in FTTH/FTTB deployments to combine and amplify signals for large-scale distribution.
🔑 Key Features
High Output Power: Each of the 16 ports provides 22 dBm output, ensuring strong signal distribution across wide networks.
WDM Integration: Supports combining CATV (1550 nm) with PON wavelengths (1310/1490 nm for XPON, 1270/1577 nm for 10G PON).
Stable Performance: Built-in APC (Automatic Power Control) and ATC (Automatic Temperature Control) circuits maintain consistent output.
Network Compatibility: Compatible with OLT/ONU systems from major vendors like Huawei, ZTE, and FiberHome.
Redundancy & Reliability: Dual power supply options (AC 90–265 V or DC -72 to -36 V) with hot-swappable modules.
Management Interfaces: Supports SNMP and web-based monitoring for easy integration into network management systems.
📊 Technical Specifications
Parameter Details
Operating Wavelength CATV: 1545–1565 nm
PON Pass Wavelengths 1310/1490 nm (XPON), 1270/1577 nm (10G PON)
Optical Input Range -8 dBm to +10 dBm
Output Power per Port 22 dBm
Number of Ports 16 SC/APC or LC/APC
Output Uniformity ≤0.7 dB
Noise Figure ≤6 dB
Isolation (CATV ↔ OLT) ≥40 dB
Power Consumption ~100 W
Dimensions 370 × 483 × 88 mm
Weight ~7.5 kg
⚙️ Applications
FTTH/FTTB: Distributes CATV and internet signals to multiple households/buildings.
CATV Transmission: Amplifies analog/digital TV signals for large coverage.
Triple-Play Networks: Supports integration of internet, TV, and voice services.
Research & Training: Used in labs for optical communication experiments.
