'vfl power meter'

Overview: The AE210 Series of optical power meters is perfect for qualifying applications using fiber optics for the physical layer, including FTTx, CATV, PON, and long haul networks. These user-friendly instruments are capable of supporting up to 9 wavelengths, covering all ranges required for the applications listed above. These handheld units provide superior accuracy, consume little power, and are built for portability in the field. With multiple available models, it's easy to find the right configuration for your testing needs. Key Benefits: • Over 100 hours' working time with 2x AA rechargeable batteries • New features: pair with LS310 Series Light Source to auto-verify source wavelength and run dual-λ testing • Identify fiber bends and faults with VFL function • Auto shutdown and self-calibration • USB interface and Toolbox software

Definition: The EXFO PON Power Meter PPM-350C is a high-precision optical power meter designed specifically for testing Passive Optical Networks (PON). It enables technicians to analyze and measure optical power levels at different wavelengths used in fiber optic networks, such as 1310 nm, 1490 nm, and 1550 nm. It is essential for FTTH (Fiber-to-the-Home) installations, troubleshooting, and maintenance to ensure optimal network performance. Key Features: Triple-Wavelength Measurement – Simultaneously measures 1310 nm (upstream), 1490 nm (downstream), and 1550 nm (video services) in PON networks. Real-Time Pass/Fail Analysis – Provides instant power level analysis to quickly determine if the network meets required standards. User-Friendly Interface – Features an easy-to-read display and intuitive controls for efficient operation. Long Battery Life – Designed for extended field use, ensuring continuous testing without frequent recharging. Highly Accurate & Reliable – Delivers precise measurements with minimal signal loss, making it ideal for professional fiber optic technicians.

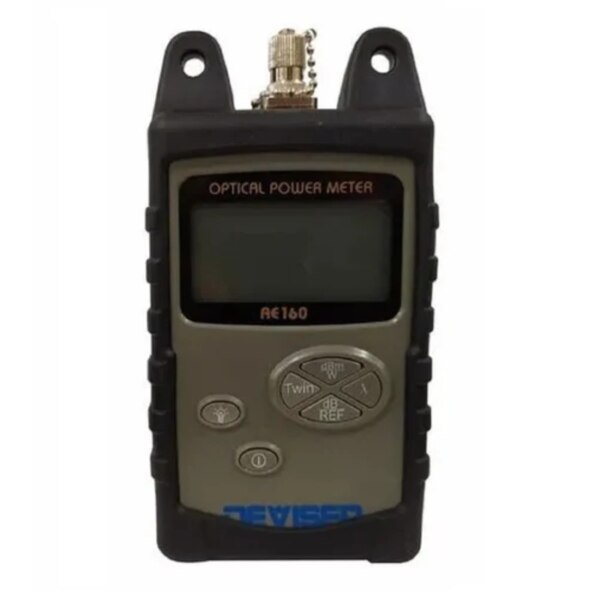

The Deviser AE Series Optical Power Meter is the ideal testing instrument for fibre network installation, debugging and maintenance in optical networks, CATV and FTTx. Key benefits include: Pocket size, making it easy to carry Power Efficient with up to 50 hours’ battery life Extremely cost-effective Auto shut down and auto calibration LCD Backlit display.

"Sky Birds International Digital" *DB Meter SBI-400* Is Is Designed For Test Of DVB-C Network. It Can Measure Channel Power, MER And BER Of Digital Channel And Single Channel, Dual Channel, A/V, C/N, Voltage Of Analog Channel. It Is An Ideal Instrument For Cable TV Maintenance.

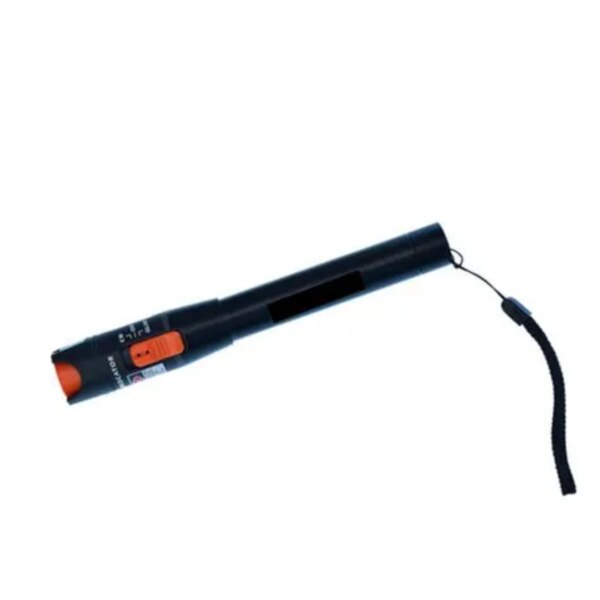

We have brought forth an extensive consignment of CT 191 Visual Fault Locator. Definition: The SBINT 191 Visual Fault Locator (VFL) is a fiber optic testing tool designed to detect breaks, bends, and other faults in optical fiber cables. It emits a visible red laser light that travels through the fiber, allowing technicians to quickly identify faults by spotting light leakage. It is widely used in fiber optic installation, maintenance, and troubleshooting. Key Features: High-Powered Laser Output – Provides a strong red laser (650nm) to detect faults up to several kilometers. Multiple Testing Modes – Supports continuous and pulse mode for flexible testing in different environments. Compact & Portable Design – Lightweight and easy to carry, making it ideal for on-the-go fiber optic technicians. Durable & Long Battery Life – Designed with a sturdy build and energy-efficient operation for extended usage. Wide Compatibility – Works with various fiber types, including single-mode and multi-mode fibers.

The Yokogawa AQ7280 is the most flexible OTDR in our lineup due to a modular platform to create a variety of systems from a basic unit to units with filtered ports to test live traffic networks in applications from long haul, to metro, core and FTTH. 35+ years of OTDR expertise has enabled us to offer a unique multi-tasking feature that allows four distinct fibers to be tested simultaneously. Its intuitive icon-based touchscreen lets users perform measurements with ease, and the 15-hour battery life ensures uninterrupted usage in the field where the data can be conveniently transferred wirelessly. Features: Dual-operation Mode – Touch screen and hard-key buttons 9 OTDR units ranging from single mode to multi mode Multi-tasking – Enhancing productivity Lightning Startup Time, under 10 seconds Multi-Fiber Measurement -Database view. Organized. Quick preview of network characteristics Fault Locator Modular Construction Optional Optical Power Meter & Checker Optical Light Source Visible Light Source

Overview : From Deviser Instruments' 4th generation of OTDR, the fieldportable AE3100 marks a giant leap forward in fiber-optic measurement performance and utility. Single-mode models A through F can test the 1310nm and 1550nm wavelengths with dynamic range up to 45dB, while multimode models M through EM add quad-λ functionality at up to 43dB. Featuring intuitive touchscreen controls and real-time data analysis, the AE3100 is the ideal test instrument for constructing, deploying, maintaining, and authenticating FTTx networks - as well as verifying access networks. Multiple models and configuration options ensure your unique measurement needs are covered Key Features: • High performance OTDR for FTTx and RFoG networks • 7”, 800x480 LCD touchscreen places power and convenience at your fingertips • Excellent short-distance performance with 0.8m event dead zone and 4m attenuation dead zone • Dual- and quad-wavelength test options with broad dynamic range coverage (28 - 45dB and 24 - 43dB respectively) • Minimum 5cm resolution • Intelligent event analysis • Excellent stability and repeatability • "FiberPath" fiber link mapping mode • Multiple options for your measurement needs, including: VFL, power meter, light source, and optical fiber microscope • Complete user data ports: supports LAN, USB, SD, & more

The MaxTester 700D Series builds on the proven tablet-inspired, lightweight and rugged OTDR MaxTester platform. The familiar 7-inch, outdoor-enhanced touchscreen continues to deliver an unprecedented user experience with its intuitive Windows-like GUI ensures a fast learning curve. The OTDR 2 environment offers icon-based functions, instant boot-up, automatic macrobend finders as well as improved auto and real‑time modes. The MaxTester 700D Series is a line of genuine high-performance OTDRs from the world’s leading manufacturer. It delivers EXFO’s tried and true OTDR quality and accuracy along with the best optical performance for right-first-time results, every time. The amazing 12-hour battery life will never let a technician down, and the plug-and-play hardware options, like the VFL, power meter and USB tools, make every technician’s job easier. Most importantly, the MaxTester 700D Series comes with the intelligent Optical Link Mapper (iOLM), an intelligent OTDR‑based application. This advanced software turns even the most complex trace analysis into a simple, one-touch task.

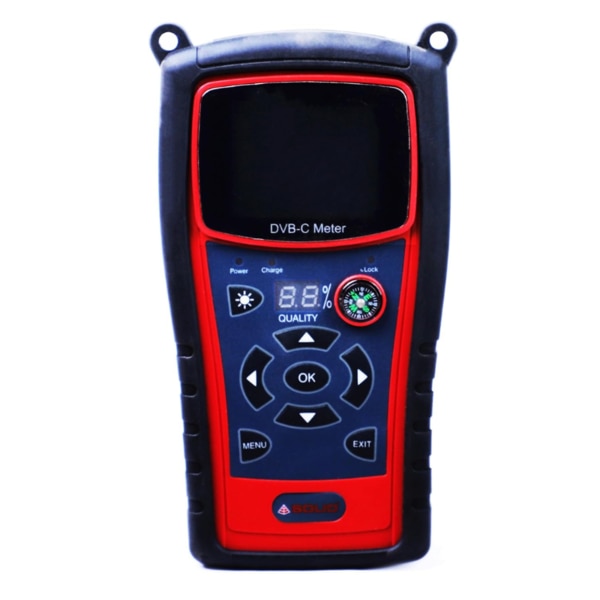

SOLID SF-750PRO DVB-C (BER+MER) dB Meter with AC / DC Features : Support DVB-C function Support Automatic channel scanning Build highlight LED Show the signal quality of the nixie tube Built-in buzzer Support to check the power cable automatically Support to reset to defaults The unit of signal power support dBm, dBuV Use USB 2.0 for software upgrade and data backup. Specifications of DVB-C signals - Frequency - 47 to 862 MHz Impedance - 75ohm Signal level - -78 to -10dBm Symbol Rate - 1.4M to 7.5M baud Demodulation Scheme - 16QAM / 32QAM / 64QAM / 128QAM / 256QAM Demolution type - DVB-C Bandwidth - 6MHz / 8Mhz
