The V1600G0-B is a GPON OLT with 4 PON ports that meets flexible and fast FTTx access, suiting the scenarios such as sparse/ remote/cost-sensitive area, smart industrial park, commercial building and FTTM, etc. Highlights Compact design, meets various application scenarios. Netlink 4 port OLT Supports the deployment in diverse scenarios including low density areas, remote areas, sparsely-populated areas and industry parks. Supports FTTM and sharing site/rack with wireless base stations. Small size and lightweight, easier to delivery and install Netlink 4 port OLT Small size and lightweight, easy to transport and install, Supports multiple installation modes, like limited room space basement, low-voltage room and small rack or cabinet. Carrier-class security protection, support dynamic routing protocol RIP&OSPF, ensure the safe operation of network Supports uplink redundancy protection including LACP STP RSTP and MTP. and support RIPEOSPF protocol. Supports Ink protection. Lower TCO Netlink 4 port OLT dramatically saves on investment fees in trunk fires, pipe. Engineering, and facilities. Effectively reduce CapEx and OpEX. Item V1600G0-B V1600G1-B V1600G2-B Dimension (L*W*H) 442mm*220mm*43.6mm 442mm*320mm*43.6mm GE/10GE Uplink Port QTY 4 8 8 RJ45(GE) 2 4 4 SFP(GE) / 2 / SFP+(10GE) 2 2 4 GPON Port QTY 4 8 16 Physical Interface SFP Slots, Max splitting ratio ≤ 1:128 Management Ports 1*FE out-band port, 1*CONSOLE port, 1*USB2.0, 1*Type-C USB(For console, G2-B) PON Port Specification (Class C+++ Module) Transmission Distance 20KM GPON port speed Upstream 1.244Gbps, Downstream 2.488Gbps Wavelength TX 1490nm, RX 1310nm Connector SC / UPC Fiber Type 9/125μm SMF Supported PON module level Class B+, C, C+, C++, C+++ Weight (Single AC Power) Net Weight 2.95kg 4.05kg 4.80kg Gross Weight 4.15kg 5.65kg 6.40kg Power Supply AC:100～240V, 47/63Hz or/and DC:-48V, Double Power Module Hot Backup Power Consumption 35W 45W 85W Operating Environment Working Temperature 0°C ~ +50°C Storage Temperature -40 ~ +85°C Relative Humidity 5 ~ 90% (non-conditioning) Management Mode EMS, WEB, SNMP, Telnet , CLI

L3 EPON OLT products are 1U height 19-inch rack mount products. The features of the OLT are small, convenient, flexible, easy to deploy, high performance. It is appropriate to be deployed in compact room environment. The OLTS can be used for "Triple-Play", VPN, IP Camera, Enterprise LAN and ICT applications Features: Provides 8GE (copper) 8SFP slots independent interface for uplink 8*EPON OLT ports for downstream. It can support 512 ONUS under 1:64 splitter ratio. Specifications: Datasheet Item Chassis Rack 1000M Uplink QTY Port Copper EPON Port PON Port Specification Management Mode Management Function Layer2 Switch SFP (independent) QTY Physical Interface Connector Type Max splitting ratio Management Ports Transmission Distance EPON port speed Wavelength Connector Fiber Type TX Power Rx Sensitivity Saturation Optical Power SNMP, Telnet and CLI GOPON-80LT-L3 1U 19 inch standard box 16 8*10/100/1000M auto- negotiation 8*SFP/4*SFP+ 8 SFP Slots 1000BASE-PX20+ 1:64 1*10/100BASE-T out-band port, 1*CONSOLE port 20KM Symmetrical 1.25Gbps TX 1490nm, RX 1310nm SC/PC 9/125μm SMF +2~+7dBm -27dBm -6dBm Fan Group Detecting; Port Status monitoring and configuration management:Layer2 switch configuration such as VLAN, Trunk, RSTP, IGMP, QOS, etc; EPON management function: DBA, ONU authorization ACL, QOS, etc; Online ONU configuration and management; User management; Alarm management. Support port VLAN and protocol VLAN; Support 4096 VLANs; Support VLAN tag/Un-tag, VLAN transparent transmission, QinQ; Support IEEE802.3d trunk; Support RSTP; QOS based on port, VID, TOS and MAC address; Access control list; IEEE802.x flow control; Port stability Statistic and monitoring

L3 EPON OLT products are 1U height 19-inch rack mount products. The features of the OLT are small, convenient, flexible, easy to deploy, high performance. It is appropriate to be deployed in compact room environment. The OLTS can be used for "Triple-Play", VPN, IP Camera, Enterprise LAN and ICT applications Features: Provides 8GE (copper) 8SFP slots independent interface for uplink 8*EPON OLT ports for downstream. It can support 512 ONUS under 1:64 splitter ratio. Specifications: Datasheet Item Chassis Rack 1000M Uplink QTY Port Copper EPON Port PON Port Specification Management Mode Management Function Layer2 Switch SFP (independent) QTY Physical Interface Connector Type Max splitting ratio Management Ports Transmission Distance EPON port speed Wavelength Connector Fiber Type TX Power Rx Sensitivity Saturation Optical Power SNMP, Telnet and CLI GOPON-80LT-L3 1U 19 inch standard box 16 8*10/100/1000M auto- negotiation 8*SFP/4*SFP+ 8 SFP Slots 1000BASE-PX20+ 1:64 1*10/100BASE-T out-band port, 1*CONSOLE port 20KM Symmetrical 1.25Gbps TX 1490nm, RX 1310nm SC/PC 9/125μm SMF +2~+7dBm -27dBm -6dBm Fan Group Detecting; Port Status monitoring and configuration management:Layer2 switch configuration such as VLAN, Trunk, RSTP, IGMP, QOS, etc; EPON management function: DBA, ONU authorization ACL, QOS, etc; Online ONU configuration and management; User management; Alarm management. Support port VLAN and protocol VLAN; Support 4096 VLANs; Support VLAN tag/Un-tag, VLAN transparent transmission, QinQ; Support IEEE802.3d trunk; Support RSTP; QOS based on port, VID, TOS and MAC address; Access control list; IEEE802.x flow control; Port stability Statistic and monitoring

A Black Ethernet Cable is used for wired networking in homes, offices, and industrial setups. Its black color is ideal for discreet installations and outdoor use. Key Features: Types: Cat5e, Cat6, Cat6a, Cat7, Cat8 Speed: Up to 10 Gbps (depends on category) Jacket: PVC, LSZH, or outdoor UV-resistant Shielding: UTP (Unshielded) or STP (Shielded) Connector: RJ45 with gold-plated contacts Lengths: 1m to 100m

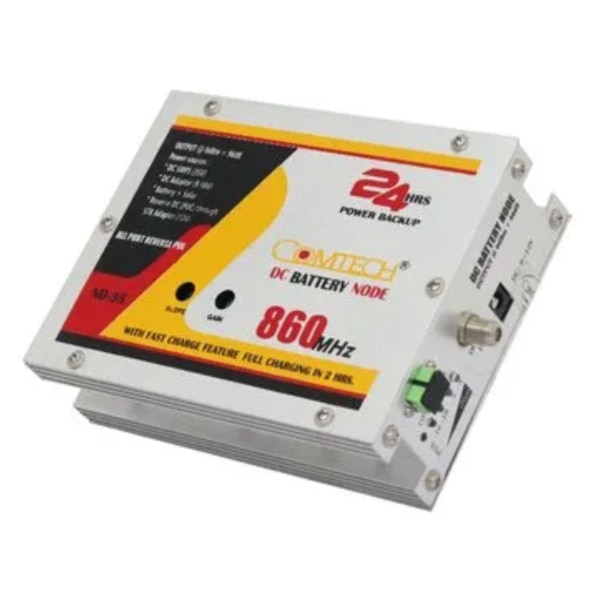

Specifications: Operate On Forward/Reverse 9-35 V Dc 2600 Mah Battery Provides Fast Charging( Full Charging In 2 Hrs. Optical Wave Length : 1200-1600 Nm Bandwidth :47-860 Mhz Single Ic Aluminium Housing With Dual Heatsink 2Rf Output With Test Point Output @ 0Dbm= 96Db Power Sources :- (1) Dc Smps (35V) (2) Dc Adaptor (9-18V) (3) Battery + Solar (4) Reverse Dc (Poc) Through Stp Adapter(12V

6 Motors Accurate Core To Core Alignment And Identify Fiber Types(SM/MM) Automatically 6 Seconds Splicing & 18 Seconds Heating And Automatic & Real-Time ARC Calibration Industrial Quad-Core CPU With 30% Power Saving Real-Time Heating Temperature Monitoring And Anti-Shock, Anti Vibration, Dustproof &Waterproof Apply To 250um/0.9mm/2.0mm/3.0mm Fibers And Temperature Range Of -10 ℃ 〜 +50 ℃
