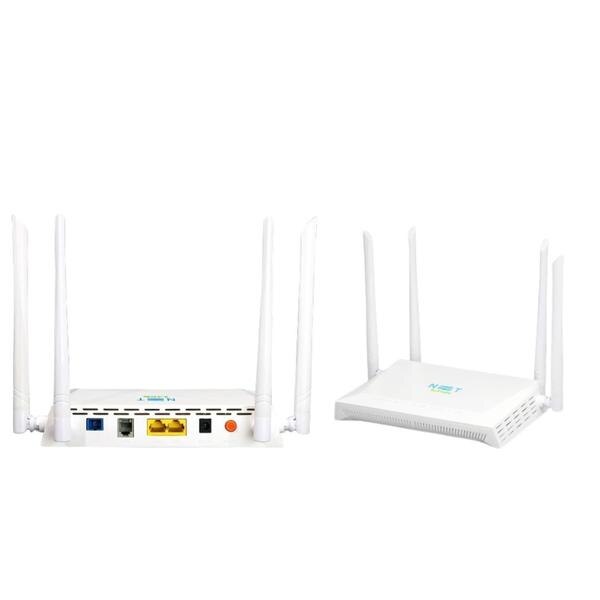

Dimension 178mm×120mm×30m(L×W×H) Net weight 0.32Kg Operating condition Operating temp: 0 ~ +55°C Operating humidity: 5 ~ 90% (non-condensed) Storing condition Storing temp: -30 ~ +60°C Storing humidity: 5 ~ 90% (non-condensed) Power adapter DC 12V,1.5A, external AC-DC power adaptor Power supply ≤10W Interface 2GE+1POTS+WiFi5 Indicators PWR, PON, LOS, WAN, LAN1, LAN2, 2.4G, 5G, PHONE ○ Interface parameter PON interface 1 XPON port(EPON PX20+ and GPON Class B+) SC Single Mode，Receiving sensitivity: ≤ –28dBm TX optical power: 0～+4dBm Transmission distance: 20KM RX 2.488Gbps, TX 1.2488Gbps Wavelength Tx-1310nm, Rx-1490nm Optical interface SC/UPC connector User interface 2 * 10/100/1000 Mbps auto adaptive Ethernet interface , RJ45 connectors 1 POTS RJ11 Connector WLAN interface Compliant with IEEE 802.11 b/g/n/ac, 1167 Mbps , Support 2×2MIMO, 5 dBi external antenna ○ Function Data Management OAM / OMCI, Telnet, WEB, TR069 Support full management of HGU functions by NETLINK OLT Internet connection Support Bridge, Route and Bridge/Route mixed mode Multicast Support IGMP v1/v2/v3 Support IGMP Proxy and MLD Proxy Support IGMP Snooping and MLD Snooping VLAN Support VLAN tag mode Support VLAN trunk mode Support VLAN translation Data Service Functions Full speed non-blocking switching 2K MAC address table 64 full range VLAN ID Support QinQ VLAN, 1:1 VLAN, VLAN reusing, VLAN trunk, etc Integrated port monitoring, port mirroring, port rate limiting, port SLA, etc Support auto polarity detection of Ethernet ports (AUTO MDIX) Integrated IEEE802.1p QoS with four level priority queues Support IGMP v1/v2/v3 snooping/proxy and MLD v1/v2 snooping/proxy VoIP Call protocol: SIP(IMS compatible) seamless compatible with all popular call agent Integrate heartbeat function and support active/standby call agent Voice coding: ITU-T G.711/G.722/G.729, auto-negotiate with call agent Echo cancellation exceeding ITU-T G.165/G.168-2002, up to 128ms tail length Support high/low speed fax, bypass fax, and T38 fax Support high speed MODEM(56Kbps) dial access Support RFC2833 and redundant RFC2833, difference rings, MD5 authentication, call forward, call waiting, hot-line call, alarm clock, and all kinds of value-added voice service Multi-party conferencing Wireless Support Wireless AP mode Support 802.11 b/g/n/ac Support Multiple SSID Authentication : WEP/WAP-PSK(TKIP)/WAP2-PSK(AES) Modulation type: DSSS, CCK and OFDM Encoding scheme: BPSK, QPSK, 16QAM and 64QAM Support EasyMesh QoS Support 4 queues Support SP and WRR Support 802.1P and DSCP L3 Support IPv4, IPv6 and IPv4/IPv6 dual stack Support DHCP/PPPOE/Static Support Static route Support DHCP Server Support NAT/DMZ/DDNS Support Virtual Server Security Support Firewall Support Mac filter Based on MAC or URL Support ACL

A Fiber Optic Fast Connector (LC) is a pre-polished, field-installable connector designed for quick and easy fiber optic terminations without requiring epoxy, polishing, or fusion splicing. It ensures a reliable and high-performance connection in FTTH and fiber optic networks. Features : LC Connector Type – Compatible with LC fiber optic ports. Field-Installable – No need for epoxy, polishing, or fusion splicing. Pre-Polished Ferrule – Ensures precise fiber alignment and low insertion loss. Quick & Easy Assembly – Reduces installation time significantly. Single-Mode & Multi-Mode Options – Supports different fiber types. High Precision Ceramic Ferrule – Provides stable and reliable performance. Low Insertion Loss (<0.3dB) – Ensures minimal signal loss. High Return Loss (>50dB) – Reduces signal reflection for better transmission. Durable & Compact Design – Made from high-quality plastic and metal. FTTH & FTTX Applications – Ideal for fiber optic networks, data centers, and telecom systems.

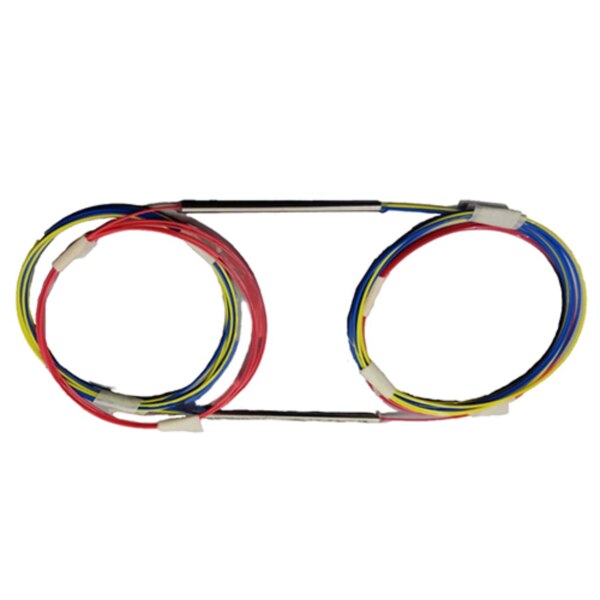

A Fused Biconical Taper (FBT) Triple Window Coupler is a passive fiber optic device that splits or combines optical signals over three different wavelength windows (1310nm, 1490nm, and 1550nm). It is widely used in fiber optic communication networks, FTTH, and WDM systems for signal distribution. Features (One-Liners): Triple Window Operation – Supports 1310nm, 1490nm, and 1550nm wavelengths. FBT Technology – Manufactured using fused biconical tapering for high reliability. Low Insertion Loss – Ensures minimal signal attenuation. High Stability & Reliability – Designed for long-term operation in telecom networks. Available in Various Splitting Ratios – Common ratios include 50:50, 40:60, etc. Single-mode & Multi-mode Compatibility – Supports different fiber types. Compact & Lightweight – Small form factor for easy integration. Wide Operating Temperature Range – Suitable for various environmental conditions. Connector & Package Options – Available with SC, LC, FC connectors, or bare fiber. Applications – Used in FTTH, PON, LAN, CATV, and fiber optic sensor systems.

An LC Fiber Optic Adapter is a small passive device used to connect two LC fiber optic connectors, enabling seamless optical signal transmission. It ensures precise alignment and low insertion loss in fiber optic networks. Features : LC Connector Type – Designed for LC fiber optic connectors. Single-mode & Multi-mode Compatible – Works with both fiber types. Low Insertion Loss – Ensures minimal signal degradation. High Precision Alignment – Ceramic or phosphor bronze sleeves for accuracy. Durable Build – Made from high-quality plastic or metal. Compact Design – Small form factor for high-density applications. Flange & Flangeless Options – Available in different mounting styles. Simple Plug-and-Play – Easy installation without additional tools. Applications – Used in data centers, telecom networks, and FTTH systems.

Our CAT 5E 4-Pair Double Coated Cable (GOLD 0.41) is designed for exceptional network reliability and performance. Engineered with gold-plated connectors and high-quality shielding, this cable ensures minimal interference and maximum data transfer efficiency. Ideal for both residential and commercial installations, this cable supports a wide range of applications, from home networking to high-demand enterprise environments.

Our CAT 5E 4-Pair Double Coated Cable (GOLD 0.41) is designed for exceptional network reliability and performance. Engineered with gold-plated connectors and high-quality shielding, this cable ensures minimal interference and maximum data transfer efficiency. Ideal for both residential and commercial installations, this cable supports a wide range of applications, from home networking to high-demand enterprise environments.

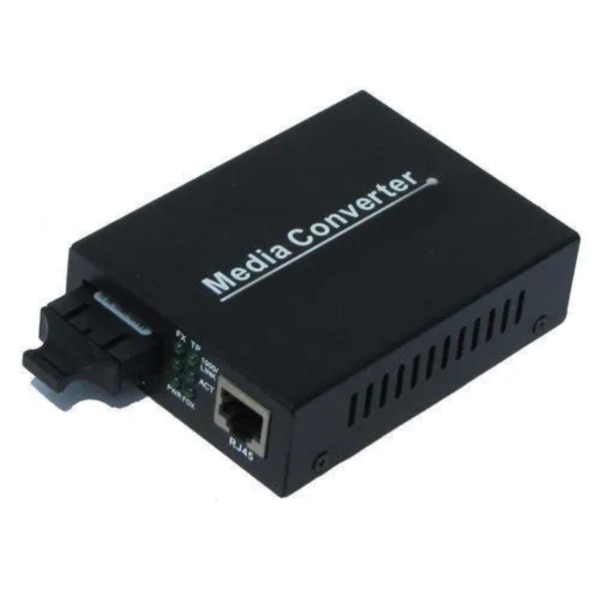

A 10/100/1000Mbps Media Converter is a networking device that enables the conversion between electrical Ethernet signals and optical signals, facilitating seamless data transmission over fiber optic cables. This technology is essential for extending network reach, especially in environments requiring high-speed and long-distance connectivity. Key Features: Auto-Negotiation: Supports auto-sensing of 10/100/1000Mbps Ethernet speeds, ensuring compatibility with various network devices. Extended Transmission Distance: Utilizes fiber optic technology to extend network transmission distances significantly, with capabilities ranging from 220 meters in multi-mode configurations up to 80 kilometers in single-mode setups. Connector Types: Equipped with standard SC connectors for secure fiber optic connections, with options for FC or LC connectors depending on the specific model and application requirements. Wavelength Support: Operates at standard optical wavelengths, including 850 nm for multi-mode and 1310 nm or 1550 nm for single-mode fiber, optimizing performance based on the fiber type used. Full/Half-Duplex Support: Capable of operating in both full-duplex and half-duplex modes, with auto-sensing capabilities to adjust based on network configurations.

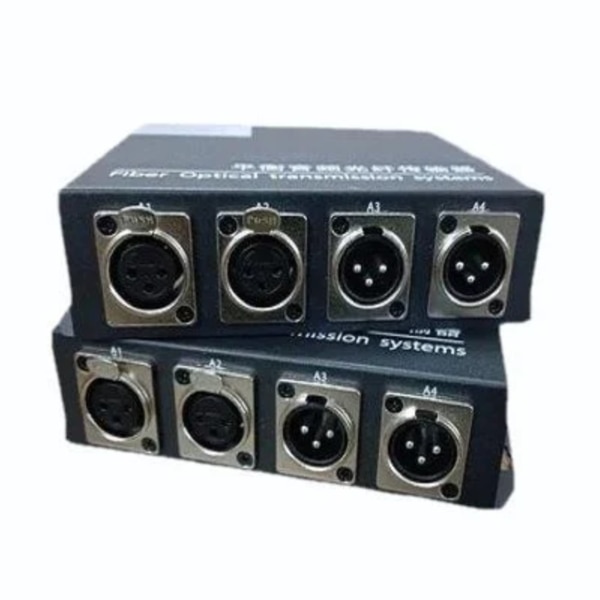

XLR Audio to Fiber Extenders support 2 + 2 Bidirectional Channels (2-Way Communication 2 Input + 2 Output ports) - 4 independent Balanced XLR audio ports of 16-bit digitally encoded broadcast quality audio over one Single Mode or Multimode (MM) optical fiber. These units are single direction - audio signal is transmitted from T (Transmitter) in the direction of R (Receiver). These professionally designed devices are typically used in applications for Staging, Parks, Broadcast, Studio Audio and professional AV applications, etc. Use SC UPC / PC connectors with SM and MM fiber optic cables. Plug and Play design ensures easy installation and operation, no configuration or driver installation are required.

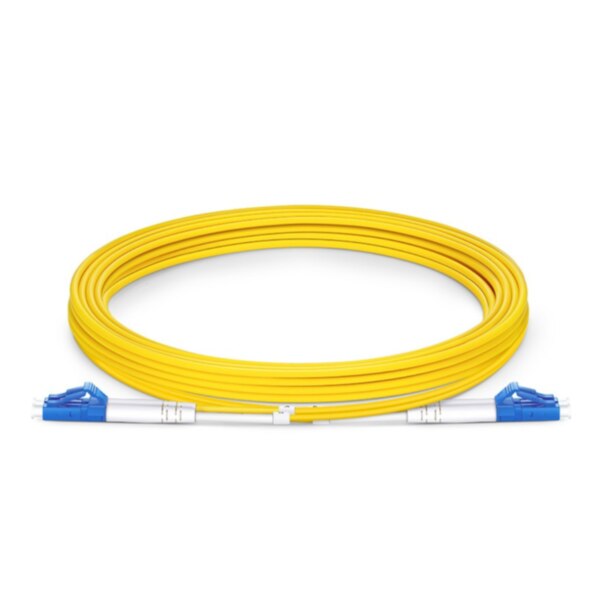

A Fiber Optic Patch Cord is a fiber cable with connectors on both ends, used to connect network devices for optical signal transmission. It is essential in telecommunications, data centers, FTTH, and enterprise networks to ensure high-speed and reliable data transfer. Key Features: Connector Types: Available in SC, LC, FC, ST, MTP/MPO Fiber Type: Single-mode (OS1, OS2) and Multimode (OM1, OM2, OM3, OM4, OM5) Cable Diameter: Typically 0.9mm, 2.0mm, or 3.0mm Insertion Loss: Low insertion loss for high performance Durability: High-quality connectors ensure long-term reliability
