The lightweight and compact Smart OTDR speeds and optimizes field testing of metro and access networks-with a tailored OTDR interface and automatic analysis that any a technician can understand. Features: Single-/dual-/tri-wavelength versions with 1310/1550 nm and in-service 1625 or 1650 nm wavelengths. Integrated CW light source. PON optimized to test through a 1×128 splitter. Built-in PON/XG-PON power meter (1490/1550/1578 nm) Automated fiber inspection and macrobend detection with pass/fail analysis software.

**The Yokogawa AQ1215A series OTDR** is designed to empower field technicians to make fast and precise measurements with confidence. The AQ1210 OTDR delivers high reliability with its robust design for operating under harsh field conditions. Engineered with innovative technology, the AQ1210 features dual operation mode by multi-touch touchscreen and hard-key buttons as well as fully automatic measurement and easy-to-read analysis reports through new software applications. In addition, the AQ1210 enhances productivity and operability with its lightning startup time, multi-tasking operation, and immediate reporting via wireless connectivity.

**The Yokogawa AQ1215E series OTDR** is designed to empower field technicians to make fast and precise measurements with confidence. The AQ1210 OTDR delivers high reliability with its robust design for operating under harsh field conditions. Engineered with innovative technology, the AQ1210 features dual operation mode by multi-touch touchscreen and hard-key buttons as well as fully automatic measurement and easy-to-read analysis reports through new software applications. In addition, the AQ1210 enhances productivity and operability with its lightning startup time, multi-tasking operation, and immediate reporting via wireless connectivity.

The MaxTester 700D Series builds on the proven tablet-inspired, lightweight and rugged OTDR MaxTester platform. The familiar 7-inch, outdoor-enhanced touchscreen continues to deliver an unprecedented user experience with its intuitive Windows-like GUI ensures a fast learning curve. The OTDR 2 environment offers icon-based functions, instant boot-up, automatic macrobend finders as well as improved auto and real‑time modes. The MaxTester 700D Series is a line of genuine high-performance OTDRs from the world’s leading manufacturer. It delivers EXFO’s tried and true OTDR quality and accuracy along with the best optical performance for right-first-time results, every time. The amazing 12-hour battery life will never let a technician down, and the plug-and-play hardware options, like the VFL, power meter and USB tools, make every technician’s job easier. Most importantly, the MaxTester 700D Series comes with the intelligent Optical Link Mapper (iOLM), an intelligent OTDR‑based application. This advanced software turns even the most complex trace analysis into a simple, one-touch task.

The Swift K11 Is An Advanced Core-to-core Alignment Splicer Ideal For Medium And Long Range Optical Circuit, Lan, Catv, Fttx. With A Compact, Light, Rugged Design And A Long Life Battery, The K11 Delivers High Precision Performance. Benefits And Feature. Wide 5.0-inch color LCD monitor with touch screen & bidirectional operation system Powerful lithium polymer battery with large capacity User friendly GUI Optical fiber recognition capability and LED lamp in heater Lowest splice loss ever in the industry Fiber Splicing Machine Specifications Category Description Fiber alignment IPAAS Core-to-Core Alignment (image pattern analysis alignment system) Applicable type of fibers 0.25mm, 0.9mm, 2.0mm, 3.0mm, 4.0mm, indoor cable Fiber count Single fiber Applicable fiber dimensions Cladding diameter: 80~150㎛, Coating diameter: 100㎛~4mm Fiber setting and cleaved length 0.28in ~ 0.63in Splicing modes Splice mode: 300, Heat mode: 100 Typical splice loss SM: 0.02dB, MM: 0.01dB, DS: 0.04dB, NZDS: 0.04dB Return loss > 60dB (typical) Splicing time Typical 6 sec. (quick mode) Sleeve heating time 9 sec (IS-45 Sleeve, IS-45 mode), 13 sec (IS-60 Sleeve, IS-60 mode) Applicable protection sleeve 1.5in, 2.4in, 1.3in or 1.1in for SOC Storage of splice result The last 10,000 results stored in internal memory (with images) Tension test 1.96N ~ 2.25N Operating condition Altitude: 5,000m, Temp: -14℉ to 122℉, Humidity: 0~95%, Wind: 15m/s, Dust/water/shock proof Storage condition Temp: -40℉ to 176℉, Humidity: 0~95% Dimensions 5.6(W) x 6.4(L) x 5.5(H) in (without bumper) Weight With battery: 5.0 lb Viewing method and display Two CMOS cameras and 5.0-inch color touch LCD Fiber view and magnification X/Y: 200X, Max: 400X Power supply DC Lithium polymer battery (14.8V, 4700/6000mAh option), 100~240V AC charger No. of splice cycles with battery Typical 250 cycles / More than 350 (K11-6000) Electrode life More than 3,500 times Terminals USB

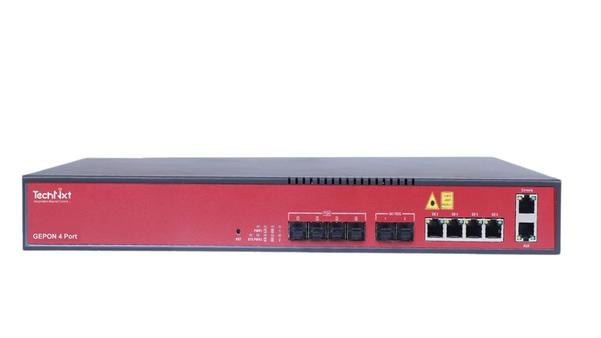

TnT-E30xxseries EPON OLT products are 1U height 19 inch rack mount products. The features of the OLT are small, convenient, flexible, easy to deploy, high performance. It is appropriate to be deployed in compact room environment. The OLTs can be used for “Triple-Play”, VPN, IP Camera, Enterprise LAN and ICT applications. FEATURES Support C/S & B/S architecture Support auto topology or modify manually Add Trap Server to detect ONU automatically EMS can add and configure ONU automatically Add ONU position information Support EMS APP

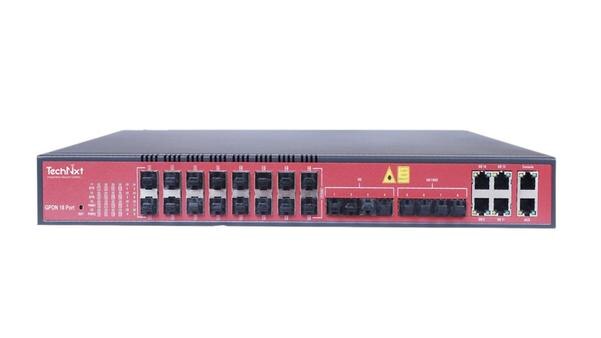

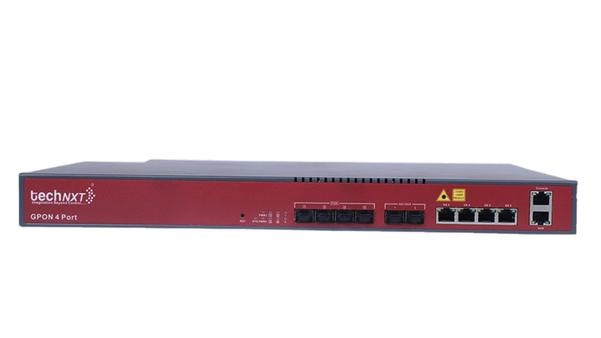

TnT-G30xx series GPON OLT products are 1U height 19 inch rack mount products. The features of the OLT are small, convenient, flexible, easy to deploy, high performance. It is appropriate to be deployed in compact room environment. The OLTs can be used for “Triple-Play”, VPN, IP Camera, Enterprise LAN and ICT applications. Support C/S & B/S architecture Support auto topology or modify manually Add Trap Server to detect ONT automatically EMS can add and configure ONT automatically Add ONT position information

TnT-E30xxseries EPON OLT products are 1U height 19 inch rack mount products. The features of the OLT are small, convenient, flexible, easy to deploy, high performance. It is appropriate to be deployed in compact room environment. The OLTs can be used for “Triple-Play”, VPN, IP Camera, Enterprise LAN and ICT applications. FEATURES Support C/S & B/S architecture Support auto topology or modify manually Add Trap Server to detect ONU automatically EMS can add and configure ONU automatically Add ONU position information Support EMS APP

TnT-E30xxseries EPON OLT products are 1U height 19 inch rack mount products. The features of the OLT are small, convenient, flexible, easy to deploy, high performance. It is appropriate to be deployed in compact room environment. The OLTs can be used for “Triple-Play”, VPN, IP Camera, Enterprise LAN and ICT applications. FEATURES Support C/S & B/S architecture Support auto topology or modify manually Add Trap Server to detect ONU automatically EMS can add and configure ONU automatically Add ONU position information Support EMS APP
