Technical Specificaons : Model Dimension Power Power Weight (L x W x H) Consumption About 280g (No Power Adapter) SY-GPON-1110- WDONT 185mm×120mm× 32mm 12V,1A ≤9W Specificaons : Parameter Name Hardware Parameter CPU 400MHz Memory 128M bytes DDR3 Flash 128M NAND PON Port Type Optical module PON GPON, SC single mode, GEPON, SC Single Mode (Dual mode) Upstream 1.25Gbps, Downstream 2.5Gbps. single-fiber Wavelength Tx 1310nm, Rx 1490nm Sensitivity <-7dBm(CLASS B+) Overload >-8dBm(CLASS B+) Optical Type SC/PC LAN interface 1*10/100/1000Mbps, 1*100Mbps Auto adaptive Ethernet interfaces, Full/Half Duplex, RJ45 connector 1POTS, RJ11 connector Wireless IEEE802.11b/g/n, 300Mbps, 2T2R Parameter : Parameter Name Hardware Parameter SY-GPON-1110-WDONT Internet connection Bridge / Routing LAN Support Port rate limiting

Dimension 178mm×120mm×30m(L×W×H) Net weight 0.32Kg Operating condition Operating temp: 0 ~ +55°C Operating humidity: 5 ~ 90% (non-condensed) Storing condition Storing temp: -30 ~ +60°C Storing humidity: 5 ~ 90% (non-condensed) Power adapter DC 12V,1.5A, external AC-DC power adaptor Power supply ≤10W Interface 2GE+1POTS+WiFi5 Indicators PWR, PON, LOS, WAN, LAN1, LAN2, 2.4G, 5G, PHONE ○ Interface parameter PON interface 1 XPON port(EPON PX20+ and GPON Class B+) SC Single Mode，Receiving sensitivity: ≤ –28dBm TX optical power: 0～+4dBm Transmission distance: 20KM RX 2.488Gbps, TX 1.2488Gbps Wavelength Tx-1310nm, Rx-1490nm Optical interface SC/UPC connector User interface 2 * 10/100/1000 Mbps auto adaptive Ethernet interface , RJ45 connectors 1 POTS RJ11 Connector WLAN interface Compliant with IEEE 802.11 b/g/n/ac, 1167 Mbps , Support 2×2MIMO, 5 dBi external antenna ○ Function Data Management OAM / OMCI, Telnet, WEB, TR069 Support full management of HGU functions by NETLINK OLT Internet connection Support Bridge, Route and Bridge/Route mixed mode Multicast Support IGMP v1/v2/v3 Support IGMP Proxy and MLD Proxy Support IGMP Snooping and MLD Snooping VLAN Support VLAN tag mode Support VLAN trunk mode Support VLAN translation Data Service Functions Full speed non-blocking switching 2K MAC address table 64 full range VLAN ID Support QinQ VLAN, 1:1 VLAN, VLAN reusing, VLAN trunk, etc Integrated port monitoring, port mirroring, port rate limiting, port SLA, etc Support auto polarity detection of Ethernet ports (AUTO MDIX) Integrated IEEE802.1p QoS with four level priority queues Support IGMP v1/v2/v3 snooping/proxy and MLD v1/v2 snooping/proxy VoIP Call protocol: SIP(IMS compatible) seamless compatible with all popular call agent Integrate heartbeat function and support active/standby call agent Voice coding: ITU-T G.711/G.722/G.729, auto-negotiate with call agent Echo cancellation exceeding ITU-T G.165/G.168-2002, up to 128ms tail length Support high/low speed fax, bypass fax, and T38 fax Support high speed MODEM(56Kbps) dial access Support RFC2833 and redundant RFC2833, difference rings, MD5 authentication, call forward, call waiting, hot-line call, alarm clock, and all kinds of value-added voice service Multi-party conferencing Wireless Support Wireless AP mode Support 802.11 b/g/n/ac Support Multiple SSID Authentication : WEP/WAP-PSK(TKIP)/WAP2-PSK(AES) Modulation type: DSSS, CCK and OFDM Encoding scheme: BPSK, QPSK, 16QAM and 64QAM Support EasyMesh QoS Support 4 queues Support SP and WRR Support 802.1P and DSCP L3 Support IPv4, IPv6 and IPv4/IPv6 dual stack Support DHCP/PPPOE/Static Support Static route Support DHCP Server Support NAT/DMZ/DDNS Support Virtual Server Security Support Firewall Support Mac filter Based on MAC or URL Support ACL

An LC Fiber Optic Adapter is a small passive device used to connect two LC fiber optic connectors, enabling seamless optical signal transmission. It ensures precise alignment and low insertion loss in fiber optic networks. Features : LC Connector Type – Designed for LC fiber optic connectors. Single-mode & Multi-mode Compatible – Works with both fiber types. Low Insertion Loss – Ensures minimal signal degradation. High Precision Alignment – Ceramic or phosphor bronze sleeves for accuracy. Durable Build – Made from high-quality plastic or metal. Compact Design – Small form factor for high-density applications. Flange & Flangeless Options – Available in different mounting styles. Simple Plug-and-Play – Easy installation without additional tools. Applications – Used in data centers, telecom networks, and FTTH systems.

Features: operrates on forward/reverse 9-35 v dc runs on 12v/7 ah battery operates on 12v adapter & also thru power over cable optical wave length : 1200-1600 nm bandwidth :47-860 mhz double ic optical sensivity : +3 ~ -12 dbm double output with test point aluminium housing with dual heatsink

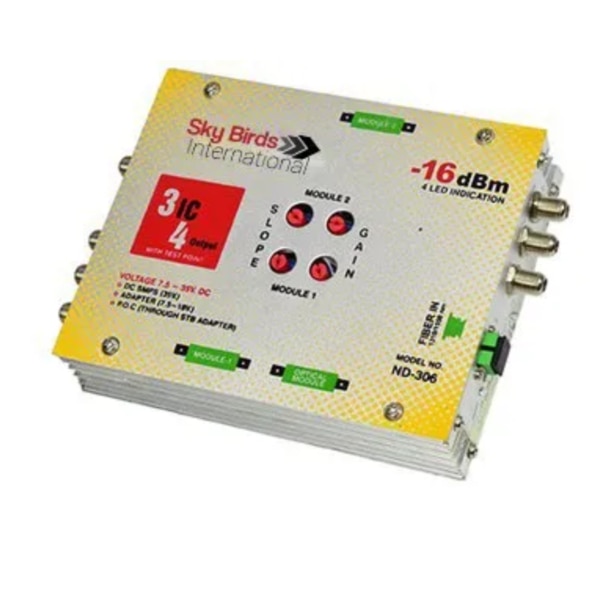

Specifications: 3 Ic Circuit *Seperate Gain And Slope Control For Each Rf Ic * 4 Ouptut ( 105Db) Operrates On Forward/Reverse 9-35 V Dc Runs On 12V/7 Ah Battery Operates On 12V Adapter & Also Thru Power Over Cable Optical Wave Length : 1200-1600 Nm Bandwidth : 47-860 Mhz Double Ic Optical Sensivity : +3 ~ -12 Dbm Double Output With Test Point Aluminium Housing With Dual Heatsink

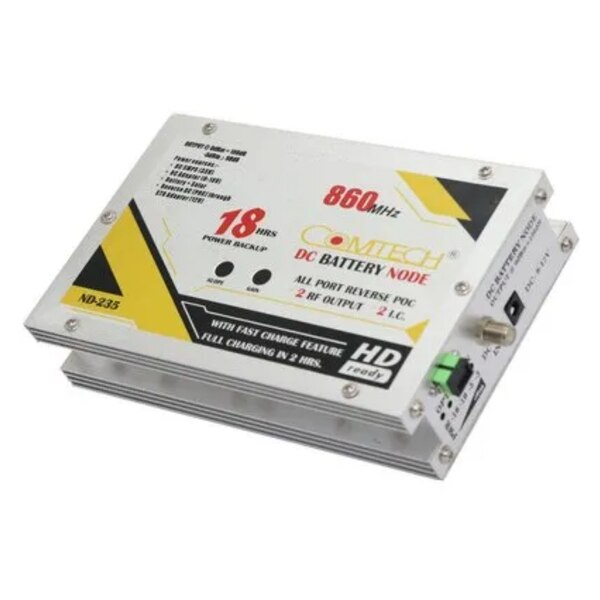

Specifications: Twin Node (2 Lines, 2 Optical Inputs Optical Wave Length : 1200-1600 Nm Output @ 0Dbm = 105Db, @-5Dbm ??? 95Db Bandwidth : 47-860 Mhz Optical Sensitivity : +2 ~ -16 Dbm All Port Reverse Poc(12V) 2600 Mah Battery Provides Fast Charging (Full Charging In 2 Hrs.) And 18 Hrs. Back-up Optional With Two Battery For 36 Hrs. Back-up For Analog/Digital/Hd Signals Aluminium Housing With Heat Sink Two Outputs With Test Point Power Sources :- * Dc Smps (35V) * Dc Adaptor (9-18V) * Battery + Solar * Reverse Dc (Poc)Through Stb Adapter (12V) Standard Packing-24 Pcs.

Specifications: Optical Wave Length : 1200-1600 Nm Output @ 0Dbm = 108Db, @-5Dbm ??? 98Db Bandwidth : 47-860 Mhz Optical Sensitivity : +2 ~ -16 Dbm All Port Reverse Poc(12V) 2600 Mah Battery Provides Fast Charging (Full Charging In 2 Hrs.) And 18 Hrs. Back-up Optional With Two Battery For 36 Hrs. Back-up For Analog/Digital/Hd Signals Aluminium Housing With Heat Sink Double Output With Test Point Power Sources :- * Dc Smps (35V) * Dc Adaptor (9-18V) * Battery + Solar * Reverse Dc (Poc)Through Stb Adapter (12V) Standard Packing-24 Pcs.

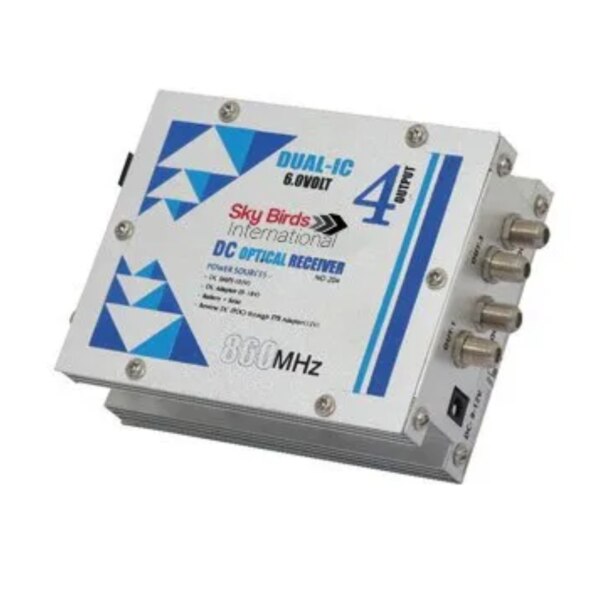

Specifications: Operrates On Forward/Reverse 9-35 V Dc Dual Ic Circuit * 4 High Gain Output ( 105 Dbm ) Runs On 12V/7 Ah Battery Operates On 12V Adapter & Also Thru Power Over Cable Optical Wave Length : 1200-1600 Nm Bandwidth : 47-860 Mhz Double Ic Optical Sensivity : +3 ~ -12 Dbm Double Output With Test Point

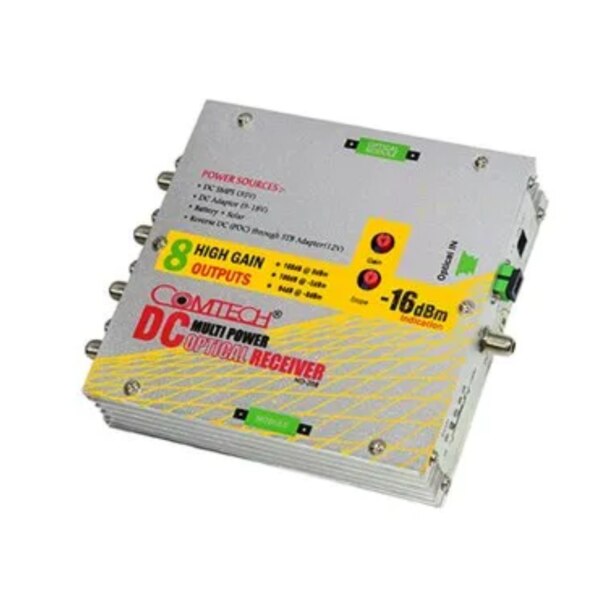

Specification: operrates on forward/reverse 9-35 v dc dual ic circuit * 8 high gain output ( 105 dbm ) runs on 12v/7 ah battery operates on 12v adapter & also thru power over cable optical wave length : 1200-1600 nm bandwidth : 47-860 mhz double ic optical sensivity : +3 ~ -12 dbm double output with test point aluminium housing with dual heatsink
